Aluminum Hydraulic Motor Bellhousing / Gear Pump Bell Housing RC250

Material Aluminum
Application hydraulic power unit
keywords motor bellhousing;hydraulic bellhousing;pump bellhousing
brand reijay
Model RC200,RC250,RC300,RC350,RC400,RC450,RC550...
USED FOR connect IEC MOTOR AND PUMP or Nema standard motor and pump
origin China
packing wooden case

Request For Quotation

Description
Q & A
Customer Reviews
Shipping Policy
Wholesale Inquiry

1. high quality customized aluminum bellhousing It is used for the connection of IEC standard motors and pumps or NEMA standard motors and pumps.

2. The motor shaft and pump shaft are designed as selfaligning, and the dimensions are made in line with the VDMA245561 standard.

It could be used in heavy loads.

3. The material for the bell housing could be chose from aluminum alloy, cast iron and nylon. By pressure casting with high medium and low pressure,

4. it is made Using flow forming and spraying forming technology, the products would present a feature of light weight, compact interior structure, high strength and good heat dissipation capability.

5. Embedded shock absorption or external shock absorption is optional.
6. Reduction of noise level of the pump motor unit possible up 8 dB(A) depending on pump construction.
7. Horizontal and vertical application possible .
8. Resistance: mineral oil 80°C max.

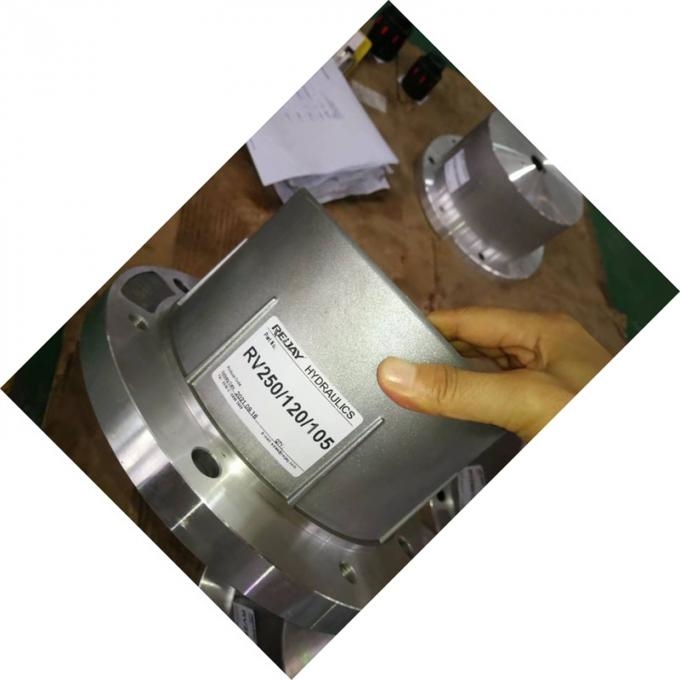

Aluminum hydraulic motor bellhousing and gear pump bell housing RC250

Typeof bellhousing	E-Motor Frame size	Power [kW]	Shaftend Dxl [mm]	Footbracket	DI	D2	D3	D4	d1	d2	d3	L	L1	F	G	G1	H2
RC 160/80/...	71	0.25	14x30	PTFL160	160	130	110	110	21	107		30	13	4	9	S8	3.5
RC 160/90/...		0.37										90
RC 200/100/...	80	0.55-0.75	19x40	PTFL200	200	165	130	145	36	129		100	16	5	11	^110	12.5
RC 200/110/...	90S+L	1.1-1.5	24x50									110
RC 200/118/...												118
RC 200/124/...										128		124
RC 200/140/...												140
RC 250/120/...	100L	2.2-3	28x60	PTFL250	250	215	180	190	45	178	172	120	19	5	14	M12	14.5
RC 250/124/...	112M	4		PTFS250								124
RC 250/128/...												128
RC 250/135/...												135
RC 250/148/...										172		14S
RC 250/175/...										176		175
RC 300/144/...	132S	5.5	38x80	PTFL300	300	265	230	234	50	222	217	144	20	5	14	M12	18
RC 300/150/...	132M	7.5		PTFS300						221		150
RC 300/155/...												155
RC 300/168/...										220		168
RC 300/196/...										217		196
RC 350/188/...	160 M+L	11-15	42x110	PTFS350	350	300	250	260	41	236	231	188	26	6	18	M16	18
RC 350/204/...	180 M+L	18.5-22	48x110						53	234		204
RC 350/228/…									70	232	228	228
RC 350/256/...									90	230	226	256
RC 400/204/...	200 L	30	55x110	PTFS400	400	350	300	300	50	265	260	204	26	6	18	M16	22
RC 400/228/...										262	(DF350)	228
RC 400/256/...										259	283	256
RC 450/234/...	225 S	37	60x140	PTFS450	450	400	350	350	80	301	(DV400)	234	26	6	18	M16	20
RC 450/262/...	225 M	45								297	362	262
RC 450/285/...										276	(DF4O1)	285
RC 450/315/...												315
RC 550/248/...	250 M	55	65x140	PTS5500	550	500	450	450	80	362		248	26	6	18	M16	20
RC 550/265/...	280 S+M	75-90	75x140							359		265
RC 550/275/...										276		275
RC 550/295/...												295
RC 550/315/...												315
RC 660/310/...	315 S+M+L	110-132	80x170	PTS660	660	600	550	550	80	414		310	32	6	23	M20	20
RC 660/330/...		160-200								276		330
RC 660/345/...												345
RC 800/315/..**	355 L	250-315	95x170		800	740	680	680	125	468		315	60	10	23	M20	35
RC 800/335/..**	400 L	355-400	100x210							474		335
RC 800/350/..**										435		350
RC 800/443/..**										490		443

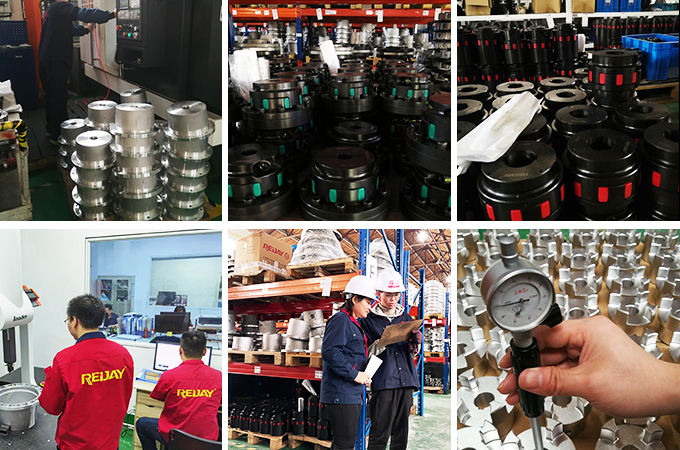

motor bellhousing and hydraulic bell housing for electric motor mass production photos

Our customers:

Q: Are you trading company or manufacturer ?
A: We are hydraulic parts and transmission manufacturer and we have been Rexroth,Parker,Eaton,Sany,Cat,Xcmg,Liugong,Zoomlion,....strategic partners for many years. www.reijay.com/en
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 20-30 days if the goods are not in stock, it is according to quantity.
Q:How long should I wait for the reply after I send the inquiry?
A: Within 12 hours.
Q:What infomation should I tell you to confirm the product?
A: Model/Size, Shaft diameter, hole diameter&Order quantity etc.
Q:What is your product warrenty period?
A:We offer2 years warrenty since the vessel departure date left China.
Q: What is your terms of payment ?
A: Payment<=5000USD, 100% in advance. Payment>=5000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us
