Aluminum Die Casting Motor Bell Housing Pump Cover Bell Housing RC400
high quality customized aluminum bellhousing It is used for the connection of IEC standard motors and pumps or NEMA standard motors and pumps. The motor shaft and pump shaft are designed as selfaligning, and the dimensions are made in line with the VDMA245561 standard. It could be used in heavy loads. The material for the bell housing could be chose from aluminum alloy, cast iron and nylon. By pressure casting with high medium and low pressure, it is made. Using flow forming and spraying forming technology, the products would present a feature of light weight, compact interior structure, high strength and good heat dissipation capability. Embedded shock absorption or external shock absorption is optional.
General Products Application /Service Area:
Metal parts for vehicle, agriculture machine, construction machine, transportation equipment, Valve and Pump system. E.g. Engine bracket, truck chassis bracket, gear box , gear housing , gear cover, shaft, spline shaft , pulley, flange, connection pipe, pipe, hydraulic valve,Fitting , flange, wheel, flywheel, oil pump housing, starter housing,transmission shaft , transmission gear, sprocket, chains etc.
Aluminum Die Casting Motor Bell Housing Aluminum Alloy Pump Cover Bell Housing RC350 technique parameter
Typeof bellhousing | E-Motor Frame size | Power [kW] | Shaftend Dxl [mm] | Footbracket | DI | D2 | D3 | D4 | d1 | d2 | d3 | L | L1 | F | G | G1 | H2 |
RC 160/80/... | 71 | 0.25 | 14x30 | PTFL160 | 160 | 130 | 110 | 110 | 21 | 107 | 30 | 13 | 4 | 9 | S8 | 3.5 | |
RC 160/90/... | 0.37 | 90 | |||||||||||||||
RC 200/100/... | 80 | 0.55-0.75 | 19x40 | PTFL200 | 200 | 165 | 130 | 145 | 36 | 129 | 100 | 16 | 5 | 11 | ^110 | 12.5 | |
RC 200/110/... | 90S+L | 1.1-1.5 | 24x50 | 110 | |||||||||||||
RC 200/118/... | 118 | ||||||||||||||||
RC 200/124/... | 128 | 124 | |||||||||||||||
RC 200/140/... | 140 | ||||||||||||||||
RC 250/120/... | 100L | 2.2-3 | 28x60 | PTFL250 | 250 | 215 | 180 | 190 | 45 | 178 | 172 | 120 | 19 | 5 | 14 | M12 | 14.5 |
RC 250/124/... | 112M | 4 | PTFS250 | 124 | |||||||||||||
RC 250/128/... | 128 | ||||||||||||||||
RC 250/135/... | 135 | ||||||||||||||||
RC 250/148/... | 172 | 14S | |||||||||||||||
RC 250/175/... | 176 | 175 | |||||||||||||||
RC 300/144/... | 132S | 5.5 | 38x80 | PTFL300 | 300 | 265 | 230 | 234 | 50 | 222 | 217 | 144 | 20 | 5 | 14 | M12 | 18 |
RC 300/150/... | 132M | 7.5 | PTFS300 | 221 | 150 | ||||||||||||
RC 300/155/... | 155 | ||||||||||||||||
RC 300/168/... | 220 | 168 | |||||||||||||||
RC 300/196/... | 217 | 196 | |||||||||||||||
RC 350/188/... | 160 M+L | 11-15 | 42x110 | PTFS350 | 350 | 300 | 250 | 260 | 41 | 236 | 231 | 188 | 26 | 6 | 18 | M16 | 18 |
RC 350/204/... | 180 M+L | 18.5-22 | 48x110 | 53 | 234 | 204 | |||||||||||
RC 350/228/… | 70 | 232 | 228 | 228 | |||||||||||||
RC 350/256/... | 90 | 230 | 226 | 256 | |||||||||||||
RC 400/204/... | 200 L | 30 | 55x110 | PTFS400 | 400 | 350 | 300 | 300 | 50 | 265 | 260 | 204 | 26 | 6 | 18 | M16 | 22 |
RC 400/228/... | 262 | (DF350) | 228 | ||||||||||||||
RC 400/256/... | 259 | 283 | 256 | ||||||||||||||
RC 450/234/... | 225 S | 37 | 60x140 | PTFS450 | 450 | 400 | 350 | 350 | 80 | 301 | (DV400) | 234 | 26 | 6 | 18 | M16 | 20 |
RC 450/262/... | 225 M | 45 | 297 | 362 | 262 | ||||||||||||
RC 450/285/... | 276 | (DF4O1) | 285 | ||||||||||||||
RC 450/315/... | 315 | ||||||||||||||||
RC 550/248/... | 250 M | 55 | 65x140 | PTS5500 | 550 | 500 | 450 | 450 | 80 | 362 | 248 | 26 | 6 | 18 | M16 | 20 | |
RC 550/265/... | 280 S+M | 75-90 | 75x140 | 359 | 265 | ||||||||||||
RC 550/275/... | 276 | 275 | |||||||||||||||
RC 550/295/... | 295 | ||||||||||||||||
RC 550/315/... | 315 | ||||||||||||||||
RC 660/310/... | 315 S+M+L | 110-132 | 80x170 | PTS660 | 660 | 600 | 550 | 550 | 80 | 414 | 310 | 32 | 6 | 23 | M20 | 20 | |
RC 660/330/... | 160-200 | 276 | 330 | ||||||||||||||
RC 660/345/... | 345 | ||||||||||||||||
RC 800/315/..** | 355 L | 250-315 | 95x170 | 800 | 740 | 680 | 680 | 125 | 468 | 315 | 60 | 10 | 23 | M20 | 35 | ||
RC 800/335/..** | 400 L | 355-400 | 100x210 | 474 | 335 | ||||||||||||
RC 800/350/..** | 435 | 350 | |||||||||||||||
RC 800/443/..** | 490 | 443 |

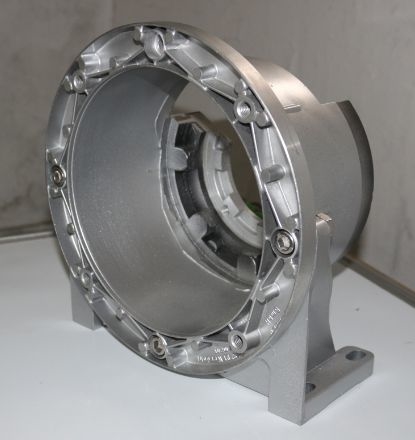

Aluminum Die Casting Motor Bell Housing Aluminum Alloy Pump Cover Bell Housing RC350 surface smoothly,light weight,compact structure

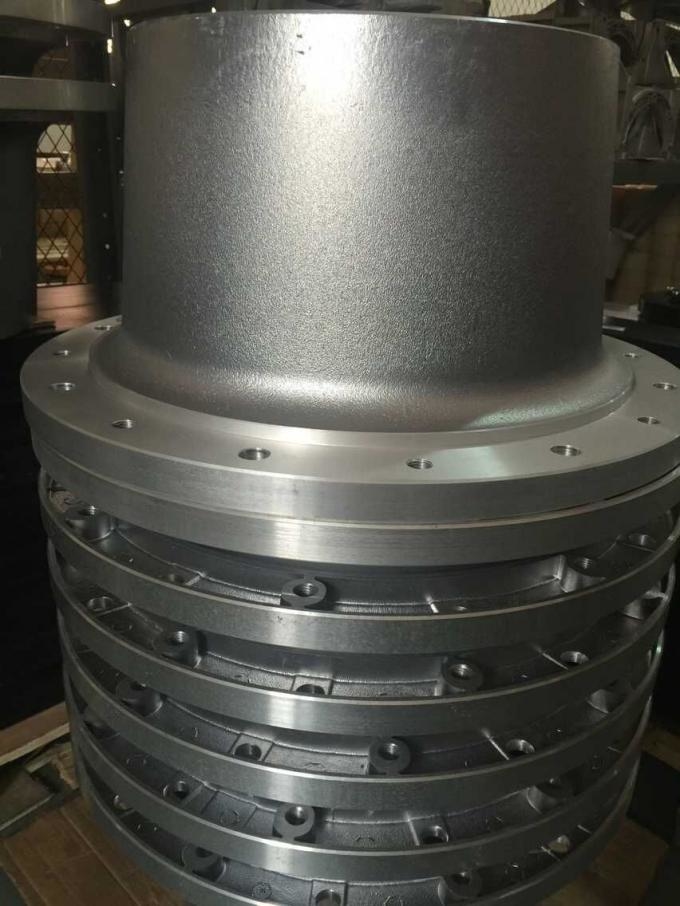

motor bellhousing and hydraulic bell housing for electric motor mass production photos
Our customers:
Q: Are you trading company or manufacturer ?
A: We are hydraulic parts and transmission manufacturer and we have been Rexroth,Parker,Eaton,Sany,Cat,Xcmg,Liugong,Zoomlion,....strategic partners for many years. www.reijay.com/en
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 20-30 days if the goods are not in stock, it is according to quantity.
Q: How long should I wait for the reply after I send the inquiry?
A: Within 12 hours.
Q: What infomation should I tell you to confirm the product?
A: Model/Size, Shaft diameter, hole diameter&Order quantity etc.
Q: What is your product warrenty period?
A: We offer2 years warrenty since the vessel departure date left China.
Q: What is your terms of payment ?
A: Payment<=5000USD, 100% in advance. Payment>=5000USD, 30% T/T in advance ,balance before shippment.
