Motor Bellhousing And Hydraulic Bell Housing For Electric Motor RC250
high quality customized aluminum bellhousing It is used for the connection of IEC standard motors and pumps or NEMA standard motors and pumps. The motor shaft and pump shaft are designed as selfaligning, and the dimensions are made in line with the VDMA245561 standard. It could be used in heavy loads.
Sand casting, Gravity casting, high pressure die casting,low pressure die casting and CNC Machining casting.
spectrometer, tensile test machine, hardness test machine,CMM dimension report
CNC turning, milling, drilling, grinding, cutting, reaming and threading
Polishing, sand blasting, heat treatment, painting, powder coating, anodizing,electroplating, Chrome plating, mirror polishing.
motor bellhousing and hydraulic pump engine bell housing for electric motor technique parameter
Typeof bellhousing | E-Motor Frame size | Power [kW] | Shaftend Dxl [mm] | Footbracket | DI | D2 | D3 | D4 | d1 | d2 | d3 | L | L1 | F | G | G1 | H2 |
RC 160/80/... | 71 | 0.25 | 14x30 | PTFL160 | 160 | 130 | 110 | 110 | 21 | 107 | 30 | 13 | 4 | 9 | S8 | 3.5 | |
RC 160/90/... | 0.37 | 90 | |||||||||||||||
RC 200/100/... | 80 | 0.55-0.75 | 19x40 | PTFL200 | 200 | 165 | 130 | 145 | 36 | 129 | 100 | 16 | 5 | 11 | ^110 | 12.5 | |
RC 200/110/... | 90S+L | 1.1-1.5 | 24x50 | 110 | |||||||||||||
RC 200/118/... | 118 | ||||||||||||||||
RC 200/124/... | 128 | 124 | |||||||||||||||
RC 200/140/... | 140 | ||||||||||||||||
RC 250/120/... | 100L | 2.2-3 | 28x60 | PTFL250 | 250 | 215 | 180 | 190 | 45 | 178 | 172 | 120 | 19 | 5 | 14 | M12 | 14.5 |
RC 250/124/... | 112M | 4 | PTFS250 | 124 | |||||||||||||
RC 250/128/... | 128 | ||||||||||||||||
RC 250/135/... | 135 | ||||||||||||||||
RC 250/148/... | 172 | 14S | |||||||||||||||
RC 250/175/... | 176 | 175 | |||||||||||||||
RC 300/144/... | 132S | 5.5 | 38x80 | PTFL300 | 300 | 265 | 230 | 234 | 50 | 222 | 217 | 144 | 20 | 5 | 14 | M12 | 18 |
RC 300/150/... | 132M | 7.5 | PTFS300 | 221 | 150 | ||||||||||||
RC 300/155/... | 155 | ||||||||||||||||
RC 300/168/... | 220 | 168 | |||||||||||||||
RC 300/196/... | 217 | 196 | |||||||||||||||
RC 350/188/... | 160 M+L | 11-15 | 42x110 | PTFS350 | 350 | 300 | 250 | 260 | 41 | 236 | 231 | 188 | 26 | 6 | 18 | M16 | 18 |
RC 350/204/... | 180 M+L | 18.5-22 | 48x110 | 53 | 234 | 204 | |||||||||||
RC 350/228/… | 70 | 232 | 228 | 228 | |||||||||||||
RC 350/256/... | 90 | 230 | 226 | 256 | |||||||||||||
RC 400/204/... | 200 L | 30 | 55x110 | PTFS400 | 400 | 350 | 300 | 300 | 50 | 265 | 260 | 204 | 26 | 6 | 18 | M16 | 22 |
RC 400/228/... | 262 | (DF350) | 228 | ||||||||||||||
RC 400/256/... | 259 | 283 | 256 | ||||||||||||||
RC 450/234/... | 225 S | 37 | 60x140 | PTFS450 | 450 | 400 | 350 | 350 | 80 | 301 | (DV400) | 234 | 26 | 6 | 18 | M16 | 20 |
RC 450/262/... | 225 M | 45 | 297 | 362 | 262 | ||||||||||||
RC 450/285/... | 276 | (DF4O1) | 285 | ||||||||||||||
RC 450/315/... | 315 | ||||||||||||||||
RC 550/248/... | 250 M | 55 | 65x140 | PTS5500 | 550 | 500 | 450 | 450 | 80 | 362 | 248 | 26 | 6 | 18 | M16 | 20 | |
RC 550/265/... | 280 S+M | 75-90 | 75x140 | 359 | 265 | ||||||||||||
RC 550/275/... | 276 | 275 | |||||||||||||||
RC 550/295/... | 295 | ||||||||||||||||
RC 550/315/... | 315 | ||||||||||||||||
RC 660/310/... | 315 S+M+L | 110-132 | 80x170 | PTS660 | 660 | 600 | 550 | 550 | 80 | 414 | 310 | 32 | 6 | 23 | M20 | 20 | |
RC 660/330/... | 160-200 | 276 | 330 | ||||||||||||||
RC 660/345/... | 345 | ||||||||||||||||
RC 800/315/..** | 355 L | 250-315 | 95x170 | 800 | 740 | 680 | 680 | 125 | 468 | 315 | 60 | 10 | 23 | M20 | 35 | ||
RC 800/335/..** | 400 L | 355-400 | 100x210 | 474 | 335 | ||||||||||||
RC 800/350/..** | 435 | 350 | |||||||||||||||
RC 800/443/..** | 490 | 443 |

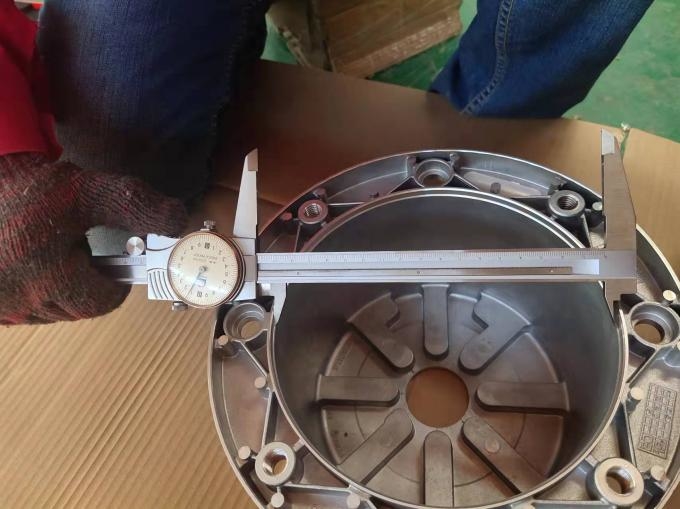

motor bellhousing and hydraulic bell housing for electric motor mass production photos
