RC350 Nema Hydraulic Motor Parts Aluminum Alloy Motor BellHousing

Material Aluminum,cast iron
Applicationhydraulic power unit hydraulic power unit pack
keywords Aluminum Die Casting Motor Bell Housing Aluminum Alloy Pump Cover Bell Housing RC350
brand reijay
Model RC350
USED FOR connect IEC MOTOR AND PUMP or Nema standard motor and pump
origin China
packing carton+wooden case
process CNC turning, milling, drilling, grinding, cutting, reaming and threading
finished Polishing, sand blasting, heat treatment, painting, powder coating, anodizing,electroplating, Chrome
certification ISO2001,16949

Request For Quotation

Description
Q & A
Customer Reviews
Shipping Policy
Wholesale Inquiry

Hydraulic Components Bell Housings Damped/Aluminum Alloy Motor Bell Housing

1) High quality customized aluminum bellhousing It is used for the connection of IEC standard motors and pumps or NEMA standard motors and pumps.

2) The motor shaft and pump shaft are designed as selfaligning, and the dimensions are made in line with the VDMA245561 standard. It could be used in heavy loads.

3) The material for the bell housing could be chose from aluminum alloy, cast iron and nylon. By pressure casting with high medium and low pressure,

4) it is made Using flow forming and spraying forming technology, the products would present a feature of light weight, compact interior structure, high strength and good heat dissipation capability. Embedded shock absorption or external shock absorption is optional.

Product Name	Custom Powder Coating OEM Aluminum Casting Bellhousing Transmission
General Products Application /Service Area	Metal Parts Solution for Vehicle, Agriculture machine, Construction Machine, transportation equipment, Valve and Pump system. E.g. Engine bracket, truck chassis bracket, gear box , gear housing , gear cover, shaft, spline shaft , pulley, flange, connection pipe, pipe, hydraulic valve , valve housing ,Fitting , flange, wheel, flywheel, oil pump housing, starter housing, coolant pump housing, transmission shaft , transmission gear, sprocket, chains etc.
Main Blank Process	Die Casting for bellhousing transmission
Applicable Material for Die Casting	ADC12, A380,6061,7075 etc. Or as customer request.
Casting Blank Size /Dimension	2 mm-600mm / 0.08inch-24inch according to customer requirement.
Applicable Machining Process	CNC Machining/ Lathing/ Milling/ Turning/ Boring/ Drilling/ Tapping/ Broaching/Reaming /Grinding/Honing and etc.
Machining Tolerance	From 0.005mm-0.01mm-0.1mm

Aluminum Die Casting Motor Bell Housing Aluminum Alloy Pump Cover Bell Housing RC350 technique parameter

Typeof bellhousing	E-Motor Frame size	Power [kW]	Shaftend Dxl [mm]	Footbracket	DI	D2	D3	D4	d1	d2	d3	L	L1	F	G	G1	H2
RC 160/80/...	71	0.25	14x30	PTFL160	160	130	110	110	21	107		30	13	4	9	S8	3.5
RC 160/90/...		0.37										90
RC 200/100/...	80	0.55-0.75	19x40	PTFL200	200	165	130	145	36	129		100	16	5	11	^110	12.5
RC 200/110/...	90S+L	1.1-1.5	24x50									110
RC 200/118/...												118
RC 200/124/...										128		124
RC 200/140/...												140
RC 250/120/...	100L	2.2-3	28x60	PTFL250	250	215	180	190	45	178	172	120	19	5	14	M12	14.5
RC 250/124/...	112M	4		PTFS250								124
RC 250/128/...												128
RC 250/135/...												135
RC 250/148/...										172		14S
RC 250/175/...										176		175
RC 300/144/...	132S	5.5	38x80	PTFL300	300	265	230	234	50	222	217	144	20	5	14	M12	18
RC 300/150/...	132M	7.5		PTFS300						221		150
RC 300/155/...												155
RC 300/168/...										220		168
RC 300/196/...										217		196
RC 350/188/...	160 M+L	11-15	42x110	PTFS350	350	300	250	260	41	236	231	188	26	6	18	M16	18
RC 350/204/...	180 M+L	18.5-22	48x110						53	234		204
RC 350/228/…									70	232	228	228
RC 350/256/...									90	230	226	256
RC 400/204/...	200 L	30	55x110	PTFS400	400	350	300	300	50	265	260	204	26	6	18	M16	22
RC 400/228/...										262	(DF350)	228
RC 400/256/...										259	283	256
RC 450/234/...	225 S	37	60x140	PTFS450	450	400	350	350	80	301	(DV400)	234	26	6	18	M16	20
RC 450/262/...	225 M	45								297	362	262
RC 450/285/...										276	(DF4O1)	285
RC 450/315/...												315
RC 550/248/...	250 M	55	65x140	PTS5500	550	500	450	450	80	362		248	26	6	18	M16	20
RC 550/265/...	280 S+M	75-90	75x140							359		265
RC 550/275/...										276		275
RC 550/295/...												295
RC 550/315/...												315
RC 660/310/...	315 S+M+L	110-132	80x170	PTS660	660	600	550	550	80	414		310	32	6	23	M20	20
RC 660/330/...		160-200								276		330
RC 660/345/...												345
RC 800/315/..**	355 L	250-315	95x170		800	740	680	680	125	468		315	60	10	23	M20	35
RC 800/335/..**	400 L	355-400	100x210							474		335
RC 800/350/..**										435		350
RC 800/443/..**										490		443

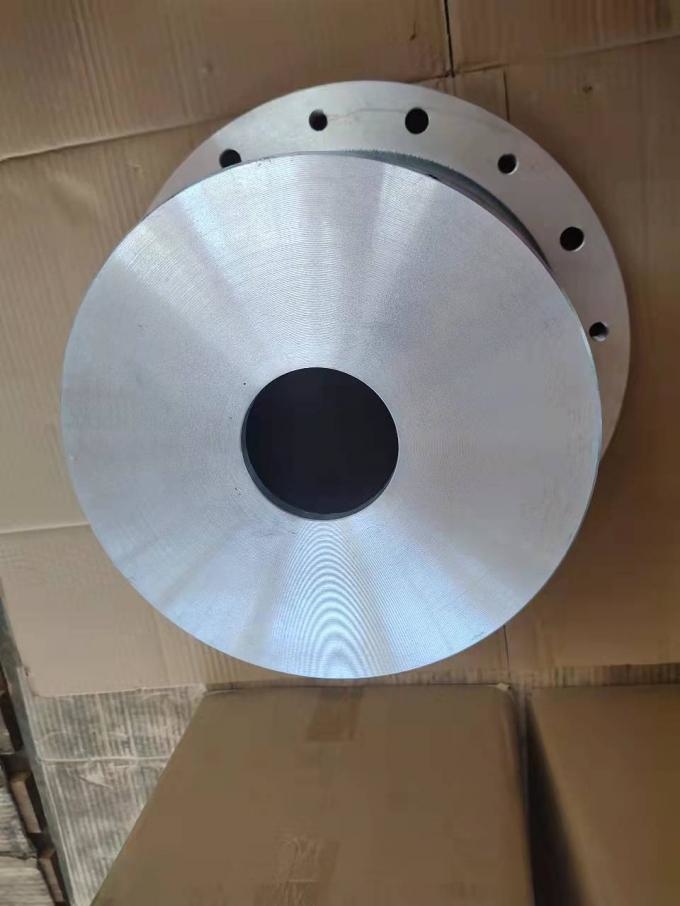

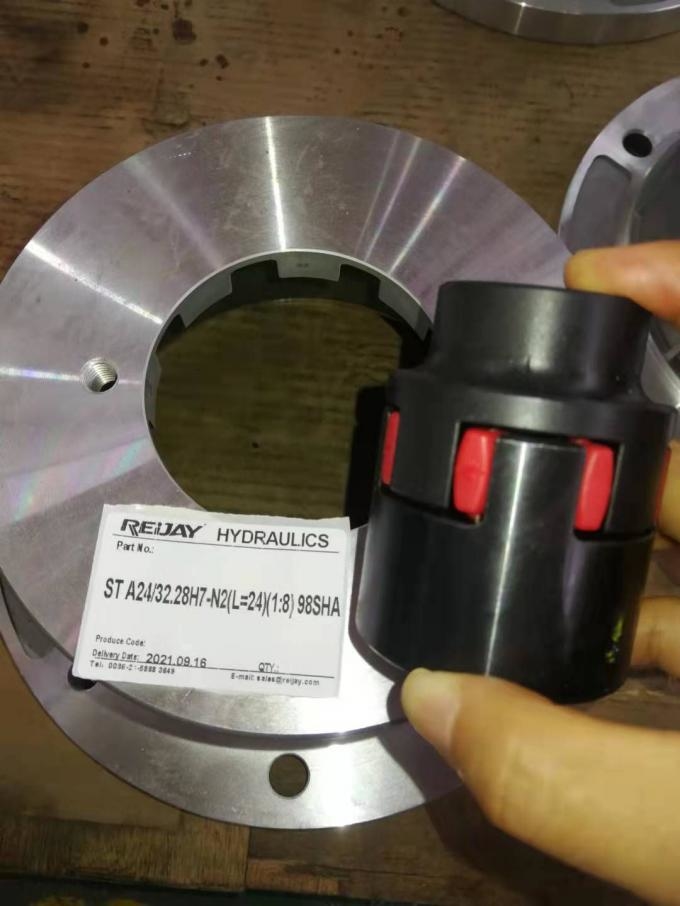

Hydraulic Components Bell housings Damped/Alloy Bell Housing RC350 surface smoothly,light weight,compact structure

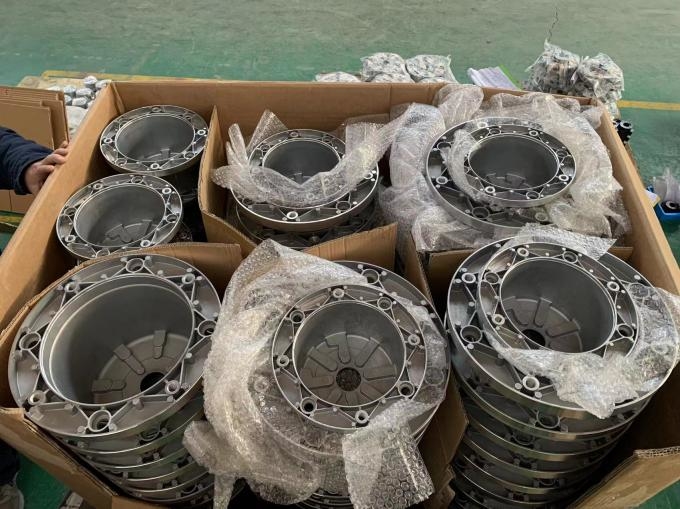

motor bellhousing and hydraulic bell housing for electric motor mass production photos

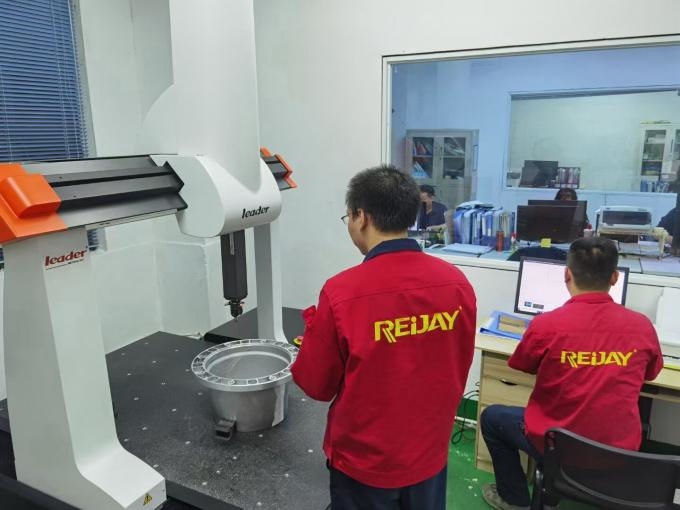

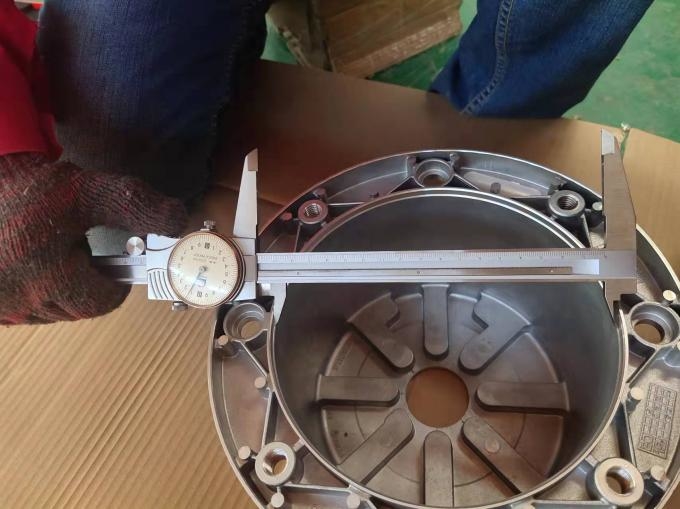

we inspecting hydraulic bell housing as below

1. High pressure die casting machining:125T/180T/250T/280T/500T/800T/1250T

2. Gravity casting machine: 5 production lines

3. Low pressure die casting machining: 1 production line

4. Sand casting machine: 6 production lines

5. Degassing equipment and opportunities to refine the material

6. Machining: 5Sets CNC Machines;3 sets Milling machines; 3 setsTurning machines; 10 sets drill and tap machines

Our customers:

Are you trading company or manufacturer ?
A: We are hydraulic parts and transmission manufacturer and we have been Rexroth,Parker,Eaton,Sany,Cat,Xcmg,Liugong,Zoomlion,....strategic partners for many years. www.reijay.com/en
How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 20-30 days if the goods are not in stock, it is according to quantity.
How long should I wait for the reply after I send the inquiry?
A: Within 12 hours.
What infomation should I tell you to confirm the product?
A: Model/Size, Shaft diameter, hole diameter&Order quantity etc.
What is your product warrenty period?
A: We offer2 years warrenty since the vessel departure date left China.
What is your terms of payment ?
A: Payment<=5000USD, 100% in advance. Payment>=5000USD, 30% T/T in advance ,balance before shippment.
