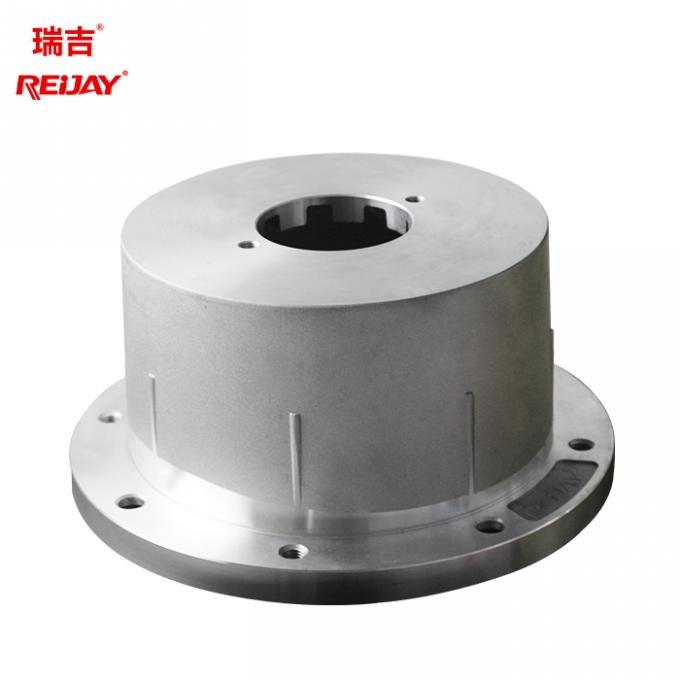

Various materials and Various specifications hydraulic pump bellhousing used for engine and pump
The hydraulic pump bellhousing is used to connect the IEC standard and NEMA standard motor and hydraulic oil pump. The motor shaft and the pump shaft are self-aligning design, and the size is manufactured according to the VDMA24561 standard, which can be used for heavy loads. The bottom is not solid but has reinforcing ribs, and there are built-in shock absorption and external flange shock absorption options; there are observation holes on the side, which is convenient for observing the operation of the machine.
Features and advantages of hydraulic pump bellhousing:
1. Selected materials are aluminum alloy, cast iron, nylon, using high and medium low pressure casting.
2. Spinning and injection molding technology is light in weight.
3. Dense internal organization, high strength and good heat dissipation.
4. Tensile strength: 228Mpa, yield strength: 154Mpa, elongation: 1.4%
5. Strong stability, beautiful appearance and long service life.
6. Simple structure, easy to operate and suitable for different working environments.
7. Low noise operation is realized in all pressure ranges.
8. German manufacturing technology guarantees product quality and comprehensive technical support.
The data of hydraulic pump bellhousing:
Model | Motor Specifications | Power | Shaft diameter | Bracket model |
RV160/80/... | 71 | 0,25 | 14x30 | PTFL160 |
RV160/90/... | 0,37 | |||
RV200/100/... | 80 | 0,55-0,75 | 19x40 | PTFL200 |
RV200/110/... | 90 S+L | 1,1-1,5 | 24x50 | |
RV200/118/... | ||||
RV200/124/... | ||||
RV200/140/... | ||||
RV250/120/... | 100L | 2,2-3 | 28x60 | PTFL250 |
RV250/124/... | 112M | 4 | PTFS250 | |
RV250/128/... | ||||
RV250/135/... | ||||
RV250/148/... | ||||
RV250/175/... | ||||
RV300/144/... | 132S | 5,5 | 38x80 | PTFL300 |
RV300/150/... | 132M | 7,5 | PTFS300 | |
RV300/155/... | ||||
RV300/168/... | ||||
RV300/196/... | ||||
RV350/188/... | 160 M+L | 11-15 | 42x110 | PTFS350 |
RV350/204/... | 180 M+L | 18,5-22 | 48x110 | |
RV350/228/... | ||||
RV350/256/... |
Shanghai Regis Machinery Transmission Technology Co., Ltd. focuses on R&D, design, and manufacture of mechanical power transmission accessories, hydraulic accessories, heat exchange products (heating and cooling devices), automation equipment; and provides related application technical support and services. Colleagues provide users with advanced European and American industrial automation components (pneumatic, hydraulic, PLC) process control and shock absorption and noise reduction system solutions, industrial intelligent interconnection system, hydraulic power unit, transmission unit design, assembly, transformation, maintenance , maintenance and related technical consulting services.
Main service industries of hydraulic pump bellhousing:
Automobile Industry/Construction Machinery/Rail Transportation/Energy Industry/Shipbuilding/Port Machinery/Petrochemical Industry/Mining Machinery/Aerospace Industry/Metallurgy Industry/Medical Machinery/Medicine and Food Machinery/Agricultural Machinery/Water Conservancy Machinery/High-end Machine Tool Manufacturing/Environmental Protection Equipment /factory can only make.
