OEM Polyurethane Coupling Elastomers Jaw Rubber Coupling Spider

Material high-strength polyurethane
Standard or nonstandard Standard
Product name Flexible Jaw Coupling
Type Standard or Nonstandard
Weight 10 g
Certification ISO 9001
Service OEM Service
Size Various specifications
Body material etc
Feature Load Capacity and Easy Maintenance

Request For Quotation

Description
Q & A
Customer Reviews
Shipping Policy
Wholesale Inquiry

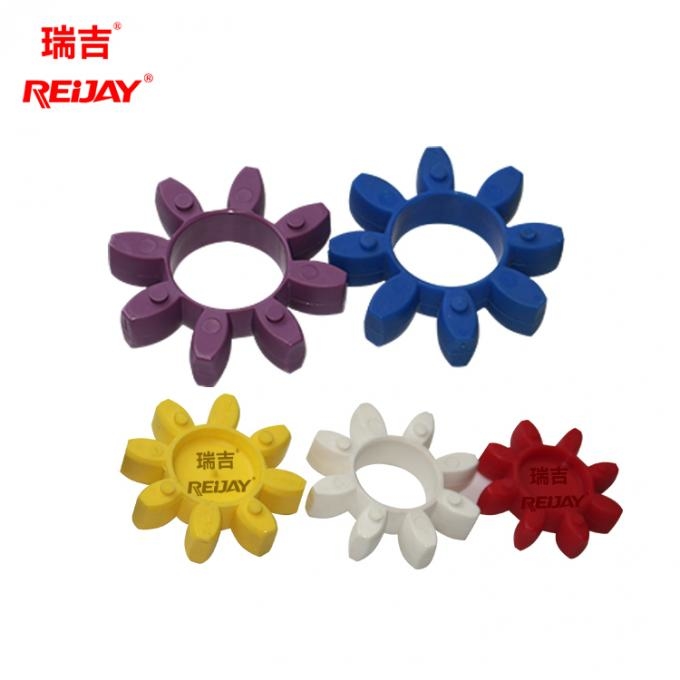

Elastomers for Flexible Jaw Coupling with High Load Capacity and Easy Maintenance

The Flexible Jaw Coupling is to install an integral plum-shaped elastomer between the claws of two half-couplings with the same shape to realize the connection of the two half-couplings. Therefore, the elastomer of the Flexible Jaw Coupling plays a crucial role in its performance.

The elastomer of the Flexible Jaw Coupling is approximately plum blossom shape, which can compensate the displacement deviation of part of the two shafts, and has the function of vibration reduction at the same time.

The data of the elastomer of the Flexible Jaw Coupling:

Spider	Size	Torque [Nm]			Max. rotation n [1/min]		Torsional angle		Torsional stress Cdyn[Nm/rad]				Relatively damping
Spider	Size	Contln, tkn		Alternat. tkw	V= 30 m/s	40 m/s				0.75			Relatively damping
80° Shore	14/16,15	4	8	1	19000		6.4°	10°					0.85
	19/24	4.9	9.7	1.3	14000	19000	3.2°	5°	0.25 x10s	0.21x103	0.17 x 103	0.11 x 103
	24/32	17	34	4.4	10600	14000			0.90 x 103	0.75 x 103	0.60x103	0.40 x10s
	28/38	46	92	12	8500	11800			230 x 103	1.93 x 103	1.52X103	1.03 x 103
	38/45	93	185	24	7100	9500			4.10X103	3.45 x 103	2.75 x 103	1.85 X103
Scale A	42/55	130	260	34	6000	8000			5.90 X103	5.05 x 103	4.00 X103	2.70 X103
Color:Blue	48/60	150	300	39	5600	7100			8.00 X103	6.81 x103	5.30 X103	3.60 X103
Color:Blue	55/70	180	360	47	4750	6300			9.95 X103	8.45 x103	6.71x10s	4.50 X103
	65/75	205	410	53	4250	5600			13.05 x 103	11.08x10*	8.79 x 103	5.89 x 103
	75/90	475	950	124	3550	4750			22.00 x10s	18.44 x 103	14.65 x10s	9.85 x 103
	90/100	1175	2350	306	2800	3750			45.00 x10s	38.20x 103	30.05 x10s	20.00 x 103
	100/110	1610	3220	419	2500	3350			75.69 x 103	64.00 x 103	50.20 x 103	34.00 x 103
	110/125	1950	3900	507	2240	3000			100.00 X103	84.00 x 103	67.00 x10s	45.00 X103
	125/145	2440	4880	634	2000	2650			140.00 X103	118.00 X103	94.00 X103	63.06 X103
92° Shore	14/16,15	7.5	15	2.0	19000		6.4.	10°	0.38 X103	0.31 x103	0.24 X103	0.14 X103	0.75
	19/24	10	20	2.6	14000	19000	3.2°	5.	1.28X103	1.05X103	0.80 X103	0.47 X103
	24/32	35	70	9.1	10600	14000			4.86 x 103	3.98 x 103	3.01x10s	1.79X103
	28/38	95	190	25	8500	11800			10.90 x 103	8.94x103	6.76 x10s	4.01 x 103
	38/45	190	380	49	7100	9500			21.05 x10s	17.26x 103	13.05 x10s	7.74 x10s
Scale A	42/55	265	530	69	6000	8000			23.74 x 103	19.47 x 103	14.72 x IO3	8.73 x10s
Color: White	48/60	310	620	81	5600	7100			36.70 X103	30.09 x10s	22.75 x10s	13.49X103
	55/70	410	820	107	4750	6300			50.72 X103	41.59 x10s	31.45 X103	18.64X103
	65/75	625	1250	163	4250	5600			97.13 X103	79.65 x103	60.22 X103	35.70 X103
	75/90	1280	2560	333	3550	4750			113.32 X103	92.92 x103	70.26 X103	41.65 X103
	90/100	2400	4800	624	2800	3750			190.09X103	155.87 x 103	117.86X103	69.86 x 103
	100/110	3300	6600	858	2500	3350			253.08 x 103	207.53 x 103	156.91 x 103	93.01 x 103
	110/125	4800	9600	1248	2240	3000			311.61 x ID3	255.52 x 103	193.20 x10s	114.52 x 103
	125/145	6650	13300	1729	2000	2650			474.86 x10s	389.39 x10s	294.41 x 103	174.51 x103
98° Shore	14/16,15	12.5	25	3.3	19000				056 x 103	0.46 x 103	035 x103	0.21 x103	0.7
	19/24	17	34	4.4	14000	19000	6.4.	10°	2.92 x 103	2.39 x 103	131 x 103	1.07X103
	24/32	60	120	16	10600	14000	3.2°	5°	9.93 x 105	8.14X103	6.16 x10s	3.65 X103
	28/38	160	320	42	8500	11800			26.77 x 103	21.95 x 103	16.60 x 103	9.84x10s
Scale A	38/45	325	650	85	7100	9500			4S.57X103	39.83x103	30.11 X103	17.85X103
Color: Red	42/55	450	900	117
