ODM Flexible Pump Rubber Coupling Spline Shaft Coupling 26mm

Material steel,cast iron
keywords flexible pump rubber coupling spline shaft coupling
Standard IEC Standard motor and Nemo motor
Service OEM .ODM .Customized
Outside Diameter(D) 26mm ~ 420mm
Hole Diameter(d) 4mm-200mm
structure jaw/spider
Warranty 2years
packing wooden case
body #45
Brand Reijay

Request For Quotation

Description
Q & A
Customer Reviews
Shipping Policy
Wholesale Inquiry

Founded in 2003, Shanghai Reijay Hydraulic & Transmission Tech Co., Ltd focus on mechanical power transmission coupling,

hydraulic system spare parts and heat exchanger products (oil heating and cooling equipment) manufacture and export.

We also provide relevant technical supports and service. We also serve customers with design, assemble, remolding and

maintenance of industrial automation components (pneumatic, hydraulic, PLC), industrial intelligent system, hydraulic power units

and drive sections.

If you need the NBL series curved jaw coupling offers zero backlash capability in a 3-piece design.please refer our catalogue 15page. The coupling is provided assembled under prestress.The series can be used in a varietyof different applications requiring precision and accuracy.

The series spider features a straight center of the spider tooth,providing higher stiffnessdue to coupling pretress.

The crowning of the ends of the spider legs allows for misalignment,while the curvedjaws and solid spider center provideh high-speed capability.

High precision flexible jaw coupling /Rotex coupling/spidex coupling/servo motor coupling some parameter. we sold to Europe,North America,Southeastern Aisa.....

Dimensions								Max. Radial displacement ormax.angular displacement n=1500tnin-1		Torque(Nm)		Dimensions			Max radial displacement with 1°angular displacement and n=15001/mln				Max axial displacement	Hexagon screws DIN933 8.8 or 10.9
Spec	OD	H	LTB	G	S	BSE	OAL (ASPC)			T_kn	T_kmax	F	SL	OAL ADSPC						Screw Spec	Screw Quartty	Torque T_A[Nm]
Spec	OD	H	LTB	G	S	BSE	OAL (ASPC)			T_kn	T_kmax	F	SL	OAL ADSPC	100	140	180	250		Screw Spec	Screw Quartty	Torque T_A[Nm]
19	40	18	25	16	10	42	92	0.65	Each Sleeve Hub 1°30'
24	55	27	30	18	16	52	112	0.89		35	70	8	52	BSE+60	1.4				1.4	M5	16	6
28	65	30	35	20	18	58	128	1		95	190	10	60	BSE+70	1.4				1.5	M6	16	14
38	80	38	45	24	20	68	158	1.15		190	380	10	68	BSE+90	1.3	2			1.8	M8	16	35
42	95	46	50	26	22	74	174	1.26		265	530	12	76	BSE+100		2			2	M8	16	35
48	105	61	56	28	24	80	192	1.36		310	620	12	80	BSE+112		2			2.1	M8	16	35
55	120	60	65	30	28	88	218	1.52		410	820	16	92	BSE+130		1.9	2.6	3.8	2.2	M10	8	69
65	135	68	75	35	32	102	252	1.75		625	1250	16	102	BSE+150				3.8	2.6	M10	12	69
75	160	80	85	40	36	116	286	2		1280	2560	19	118	BSE+170			2.4	3.7	3	M12	15	120
90	200	100	100	45	40	130	330	2.5		2400	4800	20	130	BSE+200				3.5	3.4	M16	15	295

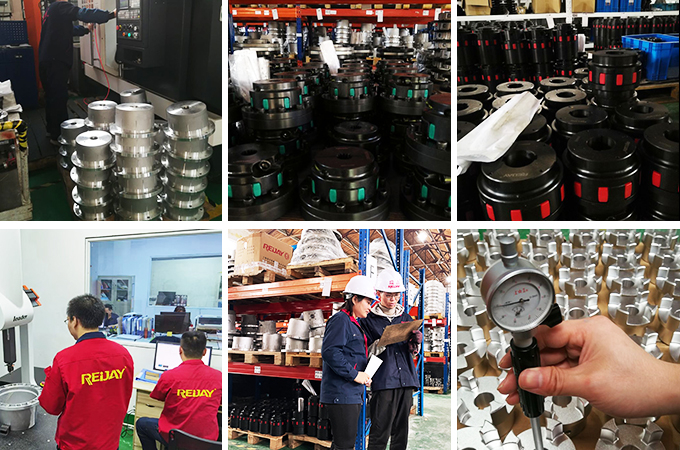

High precision Aluminum alloy flexible jaw coupling with elastomer/Rotex coupling/spidex coupling/servo motor coupling some parameter production photos

Product Name	Aluminum alloy material Rotex Coupling/flexible jaw coupling/Reijay coupling hydraulic motor coupling A19,24,28,38,42,48,55,65,….
Standard	IEC standard Motor
Material	stainless steel,cast steel,aluminum,cast iron
Type	Claw Coupling/ Elastic Couplings/NBL Precison no backlash/expansion sleeve toothless/….
Operating Temperature	( -40°C to +120°C
cnnecting way	keyway,spline and single slot locking,etc
Feature	Light Weight, Flexible, Vibration Damping
Custom Order	Accept
Application	Engine Construction and Plant Engineering,IEC standard Motor,mining machinery,hydraulic machinery….

Our strategic partners customers:

Are you trading company or manufacturer ?
A: We are global construction machinery OEM manufacturer and we have been Sany,Xcmg,Liugong,Zoomlion,Cummins,Deutz,Rexroth,Parker....supplier for many years.
How long is your delivery time?
A: 3-30days (stock 3days)
What infomation should I tell you to confirm the product?
A: Motor drawing or other technique parameter
What is your product warrenty period?
A: We offer 2-10 years servce life since the vessel departure date left China.
