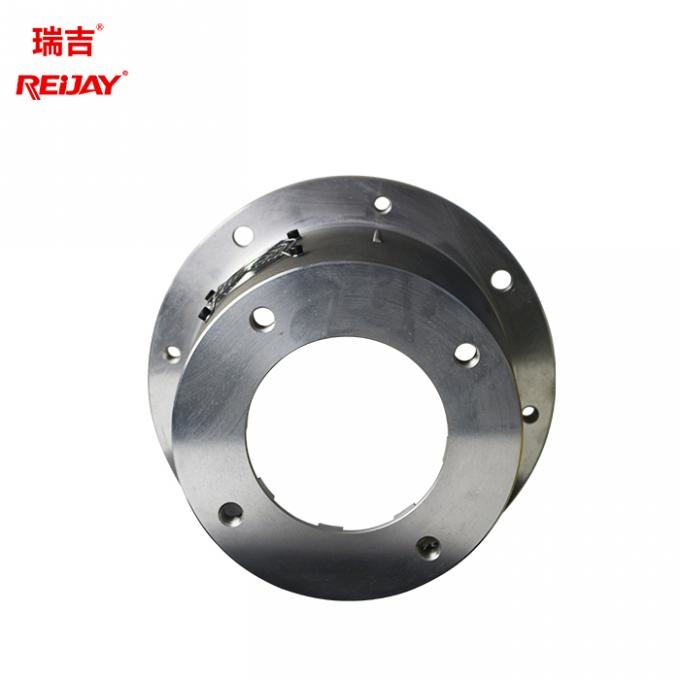

Multi-size and light weight GG material Hydraulic Pump Bellhousing for hydraulic pumps
Reijay can not only provide you with aluminum alloy Hydraulic Pump Bellhousing, in order to meet the needs of customers, we can also provide you with GG material Hydraulic Pump Bellhousing to meet the needs of special working conditions.
The data of GG material Hydraulic Pump Bellhousing:
Type of bellhousing | Frame size | Power [kW] | Shaft end Dxl [mm] | Type of foot bracket | DI | D2 | D3 | EM | D5 | D6 | T | L | L1 | L2 | L3 | N | G | G1 | Weight [kg] |
GG-RC250/175/ | 112M | 4 | 28x60 | GG-PTFS 250 | 250 | 215 | 180 | 190 | 40 | 176 | 10 | 175 | 19 | 14 | 5 | 4 | 14 | M12 | 10.50 |
GG-RC300/144/... | 132 S | 5.5 | 38x80 | GG-PTFS 300 | 300 | 265 | 230 | 234 | 50 | 222 | 10 | 144 | 20 | 16 | 5 | 4 | 14 | M12 | 13.00 |
GG-RC300/196/... | 132M | 7.5 | 75 | 218 | 196 | 15.00 | |||||||||||||
GG-RC350/188/... | 160M+L | 11+15 | 42x110 | GG-PTFS 350 | 350 | 300 | 250 | 260 | 40 | 245 | 10 | 188 | 26 | 18 | 6 | 4 | 18 | M16 | 20.50 |
GG-RC350/204/... | 180M+L | 18.5 + 22 | 48x110 | 50 | 244 | 204 | 21.00 | ||||||||||||
GG-RC350/228/... | 65 | 243 | 228 | 22.00 | |||||||||||||||
GG-RC350/256/... | 85 | 241 | 256 | 23.50 | |||||||||||||||
GG-RC400/204/... | 200 L | 30 | 55x110 | GG-PTFS 400 | 400 | 350 | 300 | 300 | 45 | 284 | 10 | 204 | 26 | 20 | 6 | 4 | 18 | M16 | 28.00 |
GG-RC400/228/... | 283 | 228 | 28.50 | ||||||||||||||||
GG-RC450/234/... | 225 S | 37 | 60x140 | GG-PTFS 450 | 450 | 400 | 350 | 350 | 50 | 332 | 10 | 234 | 26 | 20 | 6 | 8 | 18 | M16 | 36.00 |
GG-RC450/262/... | 225 M | 45 | 80 | 330 | 262 | 37.50 | |||||||||||||
GG-RC550/248/ | 250 M | 55 | 65x140 | GG-PTFS 550 | 550 | 500 | 450 | 450 | 80 | 431 | 10 | 248 | 26 | 20 | 6 | 8 | 18 | M16 | 53.00 |
GG-RC550/265/... | 280 S+M | 75 + 90 | 75x140 | 430 | 265 | 53.50 | |||||||||||||
GG-RC660/330/... | 315 S+M+L | 160 + 200 | 80x170 | GG-PTFS 660 | 660 | 600 | 550 | 550 | 80 | 526 | 10 | 330 | 32 | 24 | 6 | 8 | 23 | M20 | 86.00 |
Shanghai Reijay Hydraulic Transmission Technology Co. Ltd. was established in 2003. We are committed to providing the most advanced mechanical transmission components, hydraulic group accessories and heat exchange products (heaters and coolers). To better satisfy special demands from customers, we can provide non-standard design, product invention, shafting torsional vibration calculation, simulation system testing and related professional software support.
You are welcome to contact us anytime!
