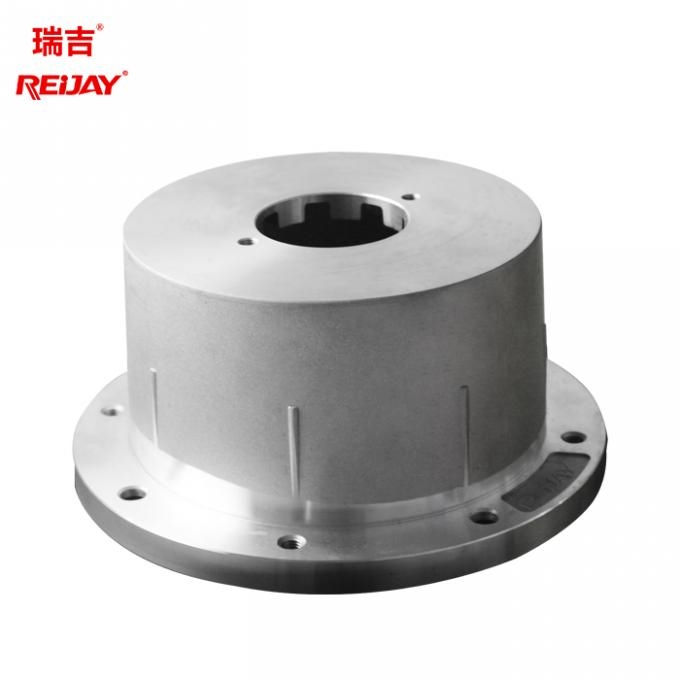

Good rigidity and fast delivery Hydraulic Pump Bellhousing used for various hydraulic pumps
The Hydraulic Pump Bellhousing is used to connect the IEC standard motor and hydraulic pump to ensure that the motor shaft and the pump shaft are coaxial in the transmission. Since the Hydraulic Pump Bellhousing is bolted to the motor and pump, the Hydraulic Pump Bellhousing needs strong strength, so the casting process is very important.
The data of Hydraulic Pump Bellhousing:
Typeof bellhousing | E-Motor Frame size | Power [kW] | Shaftend Dxl [mm] | Footbracket | DI | D2 | D3 | D4 | d1 | d2 | d3 | L | L1 | F | G | G1 | H2 |
RC 160/80/... | 71 | 0.25 | 14x30 | PTFL160 | 160 | 130 | 110 | 110 | 21 | 107 | 30 | 13 | 4 | 9 | S8 | 3.5 | |
RC 160/90/... | 0.37 | 90 | |||||||||||||||
RC 200/100/... | 80 | 0.55-0.75 | 19x40 | PTFL200 | 200 | 165 | 130 | 145 | 36 | 129 | 100 | 16 | 5 | 11 | ^110 | 12.5 | |
RC 200/110/... | 90S+L | 1.1-1.5 | 24x50 | 110 | |||||||||||||
RC 200/118/... | 118 | ||||||||||||||||
RC 200/124/... | 128 | 124 | |||||||||||||||
RC 200/140/... | 140 | ||||||||||||||||
RC 250/120/... | 100L | 2.2-3 | 28x60 | PTFL250 | 250 | 215 | 180 | 190 | 45 | 178 | 172 | 120 | 19 | 5 | 14 | M12 | 14.5 |
RC 250/124/... | 112M | 4 | PTFS250 | 124 | |||||||||||||
RC 250/128/... | 128 | ||||||||||||||||
RC 250/135/... | 135 | ||||||||||||||||
RC 250/148/... | 172 | 14S | |||||||||||||||
RC 250/175/... | 176 | 175 | |||||||||||||||
RC 300/144/... | 132S | 5.5 | 38x80 | PTFL300 | 300 | 265 | 230 | 234 | 50 | 222 | 217 | 144 | 20 | 5 | 14 | M12 | 18 |
RC 300/150/... | 132M | 7.5 | PTFS300 | 221 | 150 | ||||||||||||
RC 300/155/... | 155 | ||||||||||||||||
RC 300/168/... | 220 | 168 | |||||||||||||||
RC 300/196/... | 217 | 196 | |||||||||||||||
RC 350/188/... | 160 M+L | 11-15 | 42x110 | PTFS350 | 350 | 300 | 250 | 260 | 41 | 236 | 231 | 188 | 26 | 6 | 18 | M16 | 18 |
RC 350/204/... | 180 M+L | 18.5-22 | 48x110 | 53 | 234 | 204 | |||||||||||
RC 350/228/… | 70 | 232 | 228 | 228 | |||||||||||||
RC 350/256/... | 90 | 230 | 226 | 256 |
The Hydraulic Pump Bellhousings offered by REIJAY have the following features:
1: The size of the Hydraulic Pump Bellhousing is manufactured according to the VDMA24561 standard
2: The connecting flanges at both ends are machined and can be connected to various hydraulic pumps of ISO standard installation size;
3: The motor shaft and the hydraulic pump shaft are automatically aligned, and the installation is convenient, accurate and efficient;
4: The material of the bell hood is made of aluminum alloy, which has good rigidity;
5: Can be used for heavy-duty connection;
6: There is a large amount of inventory, and the delivery time is fast;
7: When ordering, users only need to provide the model of the motor and hydraulic pump, please contact us for specific parameters;
8.: REIJAY can also provide other hydraulic accessories: Hydraulic Pump Bellhousing brackets, shock absorbers, hydraulic oil tanks, etc.
