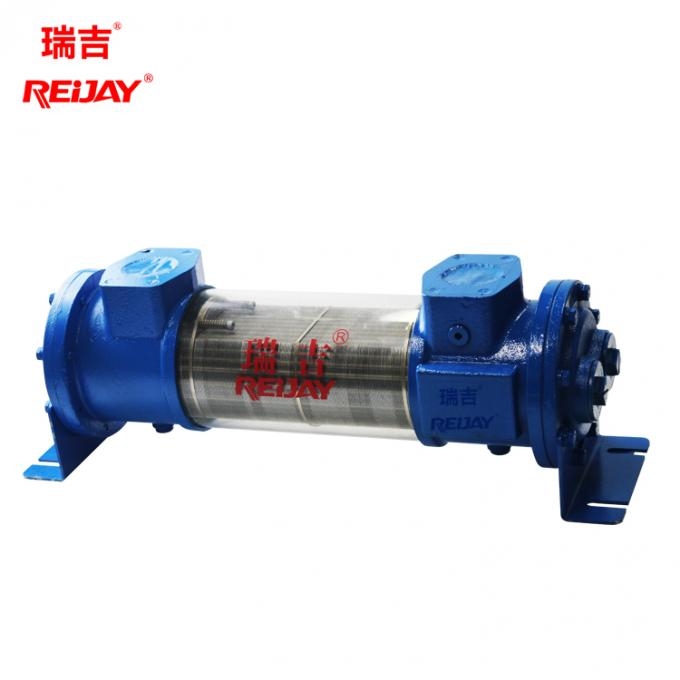

Small size and self-cleaning Hydraulic Oil Cooler is suitable for installation in confined spaces
Hydraulic Oil Cooler heat transfer tube adopts copper tube to roll out radiating fins. This equipment can realize heat exchange between two liquid media with a certain temperature difference, so as to reduce the oil temperature and ensure the normal operation of power equipment. It is mainly used for Equipment lubricating oil cooling, transmission system oil cooling, transformer oil cooling, etc. The oil cooler is divided into vertical according to the installation form. According to the cooling tube form, it is divided into two types: light tube type and enhanced heat transfer tube type. Technical features The stick-expanded argon and gas jacket welding processes are used respectively to adapt to the operation under different conditions. Special size oil cooler can be customized according to user needs.
Technical data of Hydraulic Oil Cooler:
Material description | Standard water coolers | Seawater coolers | others | |||||||||
Cooling water pipe | Copper-nickel 90/10 (Cu Ni 90/10) | Copper-nickel 90/10 (Cu Ni 90/10) | Red copper/stainless steel 1.4404(AISI316L) | |||||||||
Shell, plate, bracket, bypass valve | Steel (ST) | Steel (ST) | ||||||||||
End cover | Cast iron (GG25) | Copper plated nickel | Stainless steel 1.4408 (AISI316) | |||||||||
Fin-plate | Aluminum (Alu) | Aluminum (Alu) | Red copper/stainless steel 1.4301 (AISI304) | |||||||||
Tube plate | Steel (ST) | Copper-nickel 90/10 (Cu Ni 90/10) | Stainless steel | |||||||||
sealing | Flat gasket C 4400 | |||||||||||
Model type | Flow in shell | Water flow | ||||||||||
Components | 1 channel | 2 channel | 4 channel | |||||||||
CU | CuNi | VA | CU | CuNi | 1.4404(AISI316L) | CopperCU | CuNi | 1.4404(AISI316L) | ||||
RN60 | 75 | 70 | 105 | 23 | 35 | 54 | - | - | - | |||
RN80G/F | 225 | 90 | 135 | 202 | 45 | 67 | 100 | 22 | 34 | 51 | ||
RN125G | 330 | 206 | 310 | 465 | 103 | 155 | 232 | 51 | 77 | 115 | ||
RN125F | 400 | 206 | 310 | 465 | 103 | 155 | 232 | 51 | 77 | 115 | ||
RN175 | 850 | 410 | 614 | 921 | 205 | 307 | 460 | 102 | 154 | 230 |
Shanghai Reijay Hydraulic Transmission Technology Co. Ltd. was established in 2003. We are committed to providing the most advanced mechanical transmission components, hydraulic group accessories and heat exchange products (heaters and coolers). To better satisfy special demands from customers, we can provide non-standard design, product invention, shafting torsional vibration calculation, simulation system testing and related professional software support.
More than 40% of the employees in Reijay nowadays are professional engineers (including senior engineers) with bachelor’s degrees or above. At the same time, we are glad to have 8 senior product application engineers and development engineers (including a PhD in Machinery who studied in Germany before). Reijay has established cooperation with many well-known universities and research institutes in dynamic simulation analysis, motion, shock, dynamics, vibration, strength, and other reliability tests. Furthermore, Reijay also cooperates with some research institutes enterprises in development partnerships and industrial and mining application tests.
