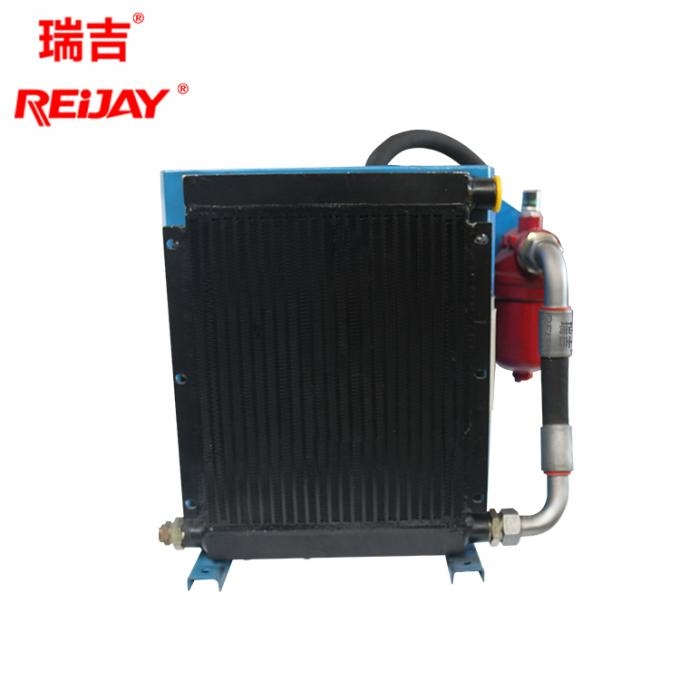

Good cooling effect Long service life Hydraulic Oil Cooler for hydraulic systems
Features and Benefits of Hydraulic Oil Cooler:
Radial fan for quiet design
Low noise (1 meter distance test, noise value <70Db(A))
Bypass cooling method: cooling range 2-20KW (At=40K)
Can be equipped with circulating pump and hydraulic filter system, high cooling efficiency
Structural composition: metal shell/motor/radial fan/cooling module (heat sink)/low noise circulating pump
Optional hydraulic filter
Technical data of Hydraulic Oil Cooler:
Fan specifications | Cooling power P[Kw] At=40K | Cooling factor | Fan diameter [mm] | Noise amplitude [d(A)] | Airflow [m3/h] | Oil volume [I] |
12V, DC | 10.3 | 0.25 | 250 | 72 | 1476 | |
24V, DC | 10.3 | 0.25 | 250 | 72 | 1476 | |
220V-50Hz,AC | 10.3 | 0.25 | 250 | 75 | 3024 | 1.9 |
400U-50Hz,AC | 10.7 | 0.25 | 250 | 75 | 3024 | |
Hydraulic Motor | 9.8 | 0.25 | 250 | 75 | 3861 | |
Fan specifications | Cooling power P[Kw] At=40K | Cooling factor | Fan diameter [mm] | Noise amplitude [d(A)] | Airflow [m3/h] | Oil volume [I] |
12V, DC | 15,1 | 0,97 | 305 | 67 | 2100 | |
24V, DC | 18,1 | 1,16 | 305 | 67 | 2400 | |
220V-50Hz,AC | 15,1 | 0,97 | 300 | 74 | 2100 | 2,9 |
400U-50Hz,AC | 15,6 | 1,0 | 300 | 76 | 2150 | |
Hydraulic Motor | 12,2 | 0,78 | 400 | 68 | 1670 |
Shanghai Reijay Hydraulic Transmission Technology Co. Ltd. was established in 2003. We are committed to providing the most advanced mechanical transmission components, hydraulic group accessories and heat exchange products (heaters and coolers). To better satisfy special demands from customers, we can provide non-standard design, product invention, shafting torsional vibration calculation, simulation system testing and related professional software support.
More than 40% of the employees in Reijay nowadays are professional engineers (including senior engineers) with bachelor’s degrees or above. At the same time, we are glad to have 8 senior product application engineers and development engineers (including a PhD in Machinery who studied in Germany before). Reijay has established cooperation with many well-known universities and research institutes in dynamic simulation analysis, motion, shock, dynamics, vibration, strength, and other reliability tests. Furthermore, Reijay also cooperates with some research institutes enterprises in development partnerships and industrial and mining application tests.
Reijay has a better understanding of the Chinese market throughout nearly 20 years of direct sales marketing system. By directly facing the needs of terminal users in product design selection, prototype verification, assembly production, market application, sharing of technical knowledge with German and American companies, we owned plenty of unique application experience which allow us to face harsh external environments. According to market demand and finding customer’s demands, Reijay technical department operates strictly under the internal quality management system (ISO9001 and IATF16949 internal quality system specifications). We develop new products and continuously improve to help customers solve problems.
Our products are shipped from China, the dispatching date will be commenced in few business days after the finishing of QC from the related department.
Detailed tracking information will be offered to your mailbox in an automatic manner as long as we officially dispatched your package from our sorting center.
Customer is advised to check more tracking information from “My Account” after the account sign in.
It occasionally comes to the situation for no displaying of tracking information after the receiving of shipment notification. Please be advised to wait for 1-2 business days until the updating of pertinent tracking information in your account center.
Expedited shipment
The changing of the shipping methods may have occurred when we are noticed from customer for the needing of rush order or lower rate of shipment delay. The related request is acceptable whenever in prior of the order is dispatched and heading to the designated shipping address.
Note: (PO) boxes or FPO/APO military addresses can only be shipped out by standard shipping method).
The shipping fare for the expedited shipment method may higher than the standard one you chose for, then please be aware that you may ask to pay for the balance for the pertinent shipment substitution. You are welcome to contact our customer service via “contact us” for further inquiry and requisition
Shipping cost all about
It is deeply appreciated to take your kind pardon for any misunderstanding about the shipping price due to the package is shipped from China.
The contract we have stipulated with FedEx, DHL, UPS and EMS is already set and therefore all merchandise is sent via Air rather than Ground. While this may not be the most cost effective for all customers, in terms of delivery time, ease of shipment and reliability we have determined that this is the most effective overall.
The shipping cost for all merchandises are displayed by adding items to your shipping bag, you can estimate shipping time and cost and acquire more shipping cost information from our site.
International Shipping
International shipping costs are calculated in U.S. currency based on estimated shipment weight and destination. Shipping costs for orders placed on the website are fairly accurate, but there are times when those estimates are incorrect. If we need to adjust shipping charges for your order we will contact you to authorize those additional shipping charges.
