FL PA Nylon Sae Flywheel Coupling KTR Bowex 48 For Combustion Engines

body materail STEEL
KEY WORDS Bowex FL-PA nylon flanges for combustion engines KTR
MODEL RJK200
Application conbustion engine
certification ISO9001/ITS16949
OEM YES
Feature high transmission rate;high mechanical strength
Standard SAE Flywheel
warranty 2years
maximum axial gap i +-2mm
color black
packing plastic+carton+wood pallet

Request For Quotation

Description
Q & A
Customer Reviews
Shipping Policy
Wholesale Inquiry

CHINA OEM Manufacturer Bowex FL-PA Nylon Flanges For Combustion Engines KTR

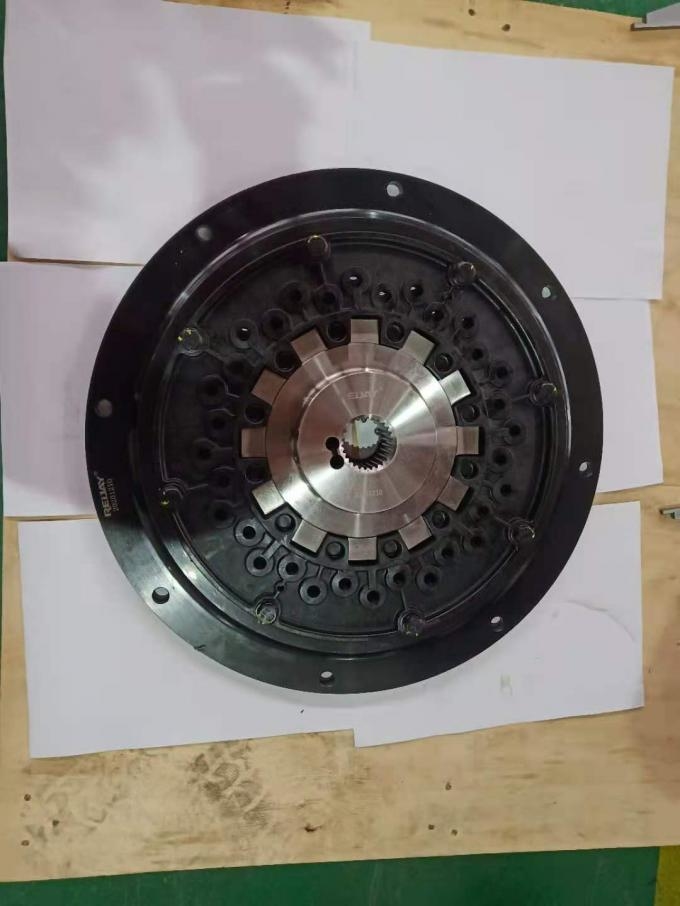

RB Series FL flywheel coupling for internal combustion engine

1. The involue-crowned teeth structure is exclusively designed for the angular deviation,so as to avoid the angular force occurred on the pump shaft and seal,and also it is beneficial to compensate the radial-angular assembly error,further to avoid extra loads.

2.The coupling sleeve is made of damping material which could decrease the vibration during transmission. The maximum axial gap is +-2mm,so it could absorb shaft movement,and also avoid the axial force occurred from axial.

3.Strengthen the match of the coupling sleeve and metal hubs,no maintenance and lurication is needed.

4. it is easy to assemble. with the property of high mechanical strength,high heat endurance,high insulation capability. The whole set coupling assembly usually fasten to the housing,and only one pump connecting plate is required. the reduced space could save to the mounting bracket.metal plate or hydrualic system,in order to reach the minimum gap. it is used for the connection of the internal combustion engine and hydraulic pump. special made flywheel nylon plates are available.

SAE Standard flywheel parameter

CHINA OEM Manufacturer Bowex FL-PA nylon flanges for combustion engines KTR

SAE Standard flywheel parameter

size	bolt mounting center circke D1mm	outer diameter Dmm	bolt hole diameter mm	bolt hole quantity
7 _1/2"	200.02	215.90	9	6
7 _1/2"	222.25	241.30	9	8
8"	244.47	263.52	11	6
10"	295.27	314.32	11	8
11_1/2"	333.37	352.42	11	8
14"	438.15	466.72	14	8

size	bolt mounting center circke D1mm	outer diameter Dmm	bolt hole diameter quantity mm	location dimension
96	50	96	4x8	70
125	100	125	3x8	80
135	100	135	3x8	135
150	130	150	5x8	106
152	122	152	3x12	105
155	125	155	3x12	155
210	185	210	3x10	125
220	165	220	6x10	220
220	185	220	3x12	125
170	140	170	3x14	170
209	165/170	209	6x16/3x16	209

RB series FL flywheel coupling technical parameter

size	prebore (mm)		dimension (mm)							special length	SAE size						axial	radial	angular
size	min	max	B	D2	L1	L2	L3	L4	L5	L1max (mm)	6_1/2"	7_1/2"	8"	10"	11_1/2"	14" *	max offset (mm)
42	20	42	65	100	42	35	42	20	13	60	X	X	X	X			±1	±0.4	±1°
48	20	48	68	100	50	43	50	20	13	60	X	X	X	X				±0.4
65	25	65	96	132	55	49	55	27	21	70	—			X				±0.6
65	25	65	96	172	55	46	55	31	22	70	—				X			±0.6
80	30	80	124	172	55	46	55	30	21	90	—				X	X		±0.8
100	38	100	152	265	70	78	70	35	21	110	—	—	—	—	X	X

replace KTR Bowex FL-PA nylon flanges for combustion engines and Centaflex coupling. We are OEM manufacturer. So we can replace KTR and centaflex coupling completely whole set and we will creat drawing for you and guarantee long service life. you need to provide us below:

1.Description of the equipment[For example:Excavator(8 ton) JR978,Road machinery JR934,Mining machinery(90 ton) JR989,Agricultural machinery JR990,Marine machinery JR901...]

2.Brand,model(For example:CUMMINS 6BTAA5.9-C160...)Maximum output torque and Maximum output speed(For example:580NM,2200RPM...)Drawing of flywheel,Drawing of flywheel housing..If there is a connection board between the flywheel housing and the pump, please attach the drawings of the pump connection board

Are you trading company or manufacturer ?
A: We are global construction machinery OEM manufacturer and we have been Cat,Sany,Xcmg,Liugong,Zoomlion,Cummins,Yanmar,Deutz,Kubota,Rexroth,Parker....supplier for many years.
How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-60 days if the goods are not in stock, it is according to quantity.
How long should I wait for the reply after I send the inquiry?
A: Within 12 hours.
What infomation should I tell you to confirm the product?
A: Model/Size, Shaft diameter, hole diameter&Order quantity etc.
What is your product warrenty period?
A:We offer one year warrenty since the vessel departure date left China.
What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.We accept the LC also.
China OEM manufacturer Reijay replace KTR Bowex FL-PA nylon flanges for combustion engines and Centaflex coupling. If you have another question, pls feel free to contact us.
