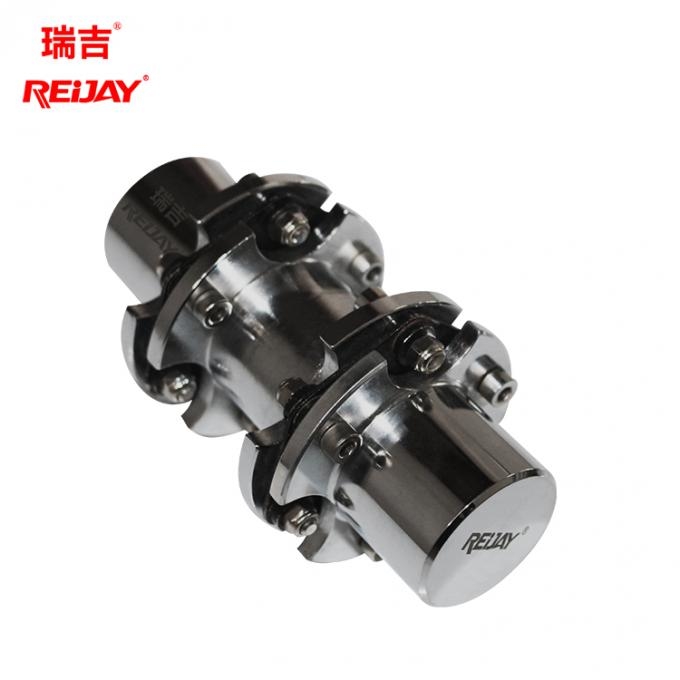

Flexible High Torque Shaft Gear Motor Coupling Stainless Steel 2000 Nm

Material Stainless steel
Feature The ability to compensate for the misalignment of the two axes is strong
Application Hash working environment
Advantage High transmission efficiency
Nominal torque 240-110000N.m
Customize Technicians help you choose
Warranty 2 years
After-sales service Yes
Name Flexible Disc Coupling
Main stucture Disc

Request For Quotation

Description
Q & A
Customer Reviews
Shipping Policy
Wholesale Inquiry

Accurate transmission speed and without noise Flexible Disc Coupling for a variety of construction machine

Features of Flexible Disc Coupling:

The diaphragm of the Flexible Disc Coupling itself is thin, so it bends easily when a relative displacement load occurs, so it can withstand up to 1.5 degrees of deviation while producing low bearing loads in the servo system. Flexible Disc Coupling are often used in servo systems, and the diaphragm has good torque rigidity. Diaphragm couplings, on the other hand, are very delicate and can be easily damaged if they are misused in use or not installed correctly. Therefore, it is very necessary to ensure that the deviation is within the bearing range of the normal operation of the coupling.

Technical data of Flexible Disc Coupling:

size	mo-ment Torque TKN Nm	Max. mo-ment Torque TKNmax Nm	Max. Speed		Weight4) kg	Massen- Moment of Intertia5) kgm2	Permissible Axial Misalign-ment6) ±ΔkA mm	Permissible Angular Misalign-ment7,8) ±ΔkW °(Degress)	messer3) Max. Bore3) mm	L mm	Z mm	P mm	L1/L2 mm	S9) mm	A mm	B mm
			without blancing1) 1/min	with blancing2) 1/min


90-6	240	480	9100	22700	2.1	0.002	1.5	1.5°	38	134	45	7.5	40	60	90	58
110-6	575	1150	7200	18000	2.9	0.004	2.1	1.5°	46	189	72	8.4	50	89	110	65
132-6	1100	2200	5840	14600	5.5	0.012	2.6	1.5°	60	228	91	8.4	60	108	132	84
158-6	2000	4000	4920	12300	8.6	0.025	3.1	1.5°	70	264	102	11.2	70	124	158	98
185-6	3300	6600	4200	10500	15.0	0.063	3.7	1.5°	80	300	112	14.0	80	140	195	112
202-6	4600	9200	3840	9600	21.0	0.110	3.8	1°	90	339	128	15.5	90	159	202	125
228-6	7000	14000	3400	8500	30.0	0.200	4.2	1°	100	375	140	17.5	100	175	228	140
255-6	10200	20400	3080	7700	40.0	0.320	4.7	1°	110	427	156	20.5	115	197	255	155
278-6	14200	28400	2800	7000	57.0	0.560	5.2	1°	124	469	177	21.2	125	219	278	174
302-6	20000	40.000	2560	6400	74.0	0.860	5.7	1°	135	505	186	24.4	135	235	302	190
325-6	25000	50.000	2400	6000	89.0	1.170	6.5	1°	145	544	202	26.0	145	254	325	205
345-6	31000	62.000	2200	5500	109.0	1.630	6.9	1°	155	580	214	28.2	155	270	345	217
380-6	42300	84.000	2040	5100	146.0	2.640	7.6	1°	170	637	233	32.0	170	297	3850	238
410-6	57100	114200	1880	4700	190.0	4.040	8.2	1°	180	690	254	33.2	185	321	410	255
440-6	73500	147000	1740	4350	224.0	5.450	8.8	1°	195	725	262	36.4	195	335	440
