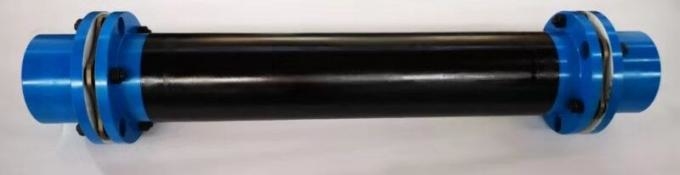

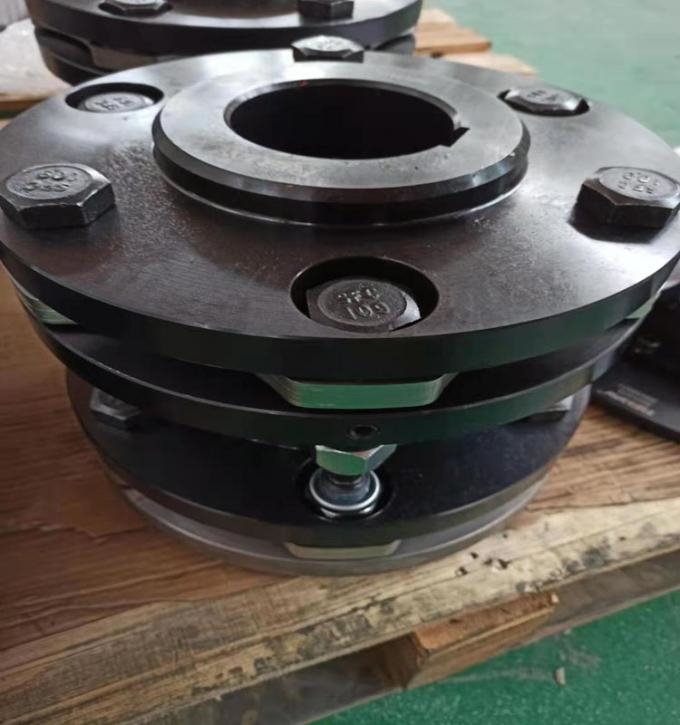

1010G Rexnord Falk Belt Conveyor Steelflex Grid Coupling

Material steel
Outside Diameter(D) 80-440mm
Hole Diameter(d) 34-195mm
Product name disc coupling rexnord coupling
Keyword disc coupling;rexnord coupling
Application steel plants,blowers,fans,crushers....
Feature high torque,resistance to harsh environment

Request For Quotation

Description
Q & A
Customer Reviews
Shipping Policy
Wholesale Inquiry

Founded in 2003, Shanghai Reijay Hydraulic & Transmission Tech Co., Ltd focus on mechanical power transmission coupling, hydraulic system spare parts and heat exchanger products (oil heating and cooling equipment) manufacture and export. We also provide relevant technical supports and service. We also serve customers with design, assemble, remolding and maintenance of industrial automation components (pneumatic, hydraulic, PLC), industrial intelligent system, hydraulic power units and drive sections.

No need for lubrication and coupling maintenanceNo wearing parts

High torsional rigidity with no rotation

High power density (higher torque for a givenoutside diameter)

Resistance to harsh environment

Rexnord falk coupling/disc coupling/ Mining coal machine belt conveyor coupling 1010G

size	mo-ment Torque T_KN Nm	Max. mo-ment Torque T_KNmax Nm	Max. Speed		Weight⁴⁾ kg	Massen- Moment of Intertia⁵⁾ kgm²	Permissible Axial Misalign-ment⁶⁾ ±ΔkA mm	Permissible Angular Misalign-ment^7,8) ±ΔkW °(Degress)	messer³⁾ Max. Bore³⁾ mm	L mm	Z mm	P mm	L1/L2 mm	S⁹⁾ mm	A mm	B mm
			without blancing¹⁾ 1/min	with blancing²⁾ 1/min


90-6	240	480	9100	22700	2.1	0.002	1.5	1.5°	38	134	45	7.5	40	60	90	58
110-6	575	1150	7200	18000	2.9	0.004	2.1	1.5°	46	189	72	8.4	50	89	110	65
132-6	1100	2200	5840	14600	5.5	0.012	2.6	1.5°	60	228	91	8.4	60	108	132	84
158-6	2000	4000	4920	12300	8.6	0.025	3.1	1.5°	70	264	102	11.2	70	124	158	98
185-6	3300	6600	4200	10500	15.0	0.063	3.7	1.5°	80	300	112	14.0	80	140	195	112
202-6	4600	9200	3840	9600	21.0	0.110	3.8	1°	90	339	128	15.5	90	159	202	125
228-6	7000	14000	3400	8500	30.0	0.200	4.2	1°	100	375	140	17.5	100	175	228	140
255-6	10200	20400	3080	7700	40.0	0.320	4.7	1°	110	427	156	20.5	115	197	255	155
278-6	14200	28400	2800	7000	57.0	0.560	5.2	1°	124	469	177	21.2	125	219	278	174
302-6	20000	40.000	2560	6400	74.0	0.860	5.7	1°	135	505	186	24.4	135	235	302	190
325-6	25000	50.000	2400	6000	89.0	1.170	6.5	1°	145	544	202	26.0	145	254	325	205
345-6	31000	62.000	2200	5500	109.0	1.630	6.9	1°	155	580	214	28.2	155	270	345	217
380-6	42300	84.000	2040	5100	146.0	2.640	7.6	1°	170	637	233	32.0	170	297	3850	238
410-6	57100	114200	1880	4700	190.0	4.040	8.2	1°	180	690	254	33.2	185	321	410	255
440-6	73500	147000	1740	4350	224.0	5.450	8.8	1°	195	725	262	36.4	195	335	440

size	ment Nominal Torque T_KN Nm	ment Peak Torque T_KNmax Nm	Max. Speed		Weight⁴⁾ kg	Massen- Moment of Intertia⁵⁾ kgm²	Permissible Axial Misalign-ment⁶⁾ ±Δk_azul mm	Permissible Angular Misalign-ment^7,8) ±Δk_wzul °(Degress)	d₁/d₂ Max. Bore³⁾ mm	L mm	Z mm	P mm	L₁/L₂ mm	S⁹⁾ Standard mm	A mm	B mm
			without blancing¹⁾ 1/min	with blancing²⁾ 1/min


278-8	20000	40000	2800	7000	59	0.573	3.7	0.5°	124	469	177	21.2	125	219	278	174
302-8	30000	60000	2560	6400	77	0.878	4.0	0.5°	135	505	186	24.4	135	235	302	190
325-8	37000	74000	2400	6000	92	1.199	4.3	0.5°	145	544	202	26.0	145	254	325	205
345-8	46000	92000	2200	5500	112	1.660	4.6	0.5°	155	580	214	28.2	155	270	345	217
380-8	63000	126000	2040	5100	150	2.715	5.0	0.5°	170	637	233	32.0	170	297	380	238
410-8	86000	172000	1880	4700	195	4.110	5.4	0.5°	180	690	254	33.2	185	321	410	255
440-8	110000	220000	1740	4350	230	5.540	5.8	0.5°	195	725	262	36.4	195	335	440

Rexnord falk coupling/Mining coal machine belt conveyor coupling 1010G

Torsional stiffness is provided for one disc pack.!Axial misaligment is provided for couplings with two disc packs.lAngular misalignent is provided per single disc pack.l See catalogue page 4 diagramm 1 + 2 for additional informaiton regarding misalignment.

Balanced as manufactured; Meets the requrements according AGMA 9000-C90 Class 9.balanced; Meets the requirents according AGMA 9000-C90 Class 10. / The maximum bores shown are for cylindrical or taper shafts with keys. For splines and other bore types, contact REIJAY Technical Support/ W eight is given for a complete coupling with maximum bores. / Moment of iner tia is given for a complete coupling with maximum bores and GD2 = 4J. . / Axial misaligment is provided for coupling with one disc pack / A ngular misalignent is provided per single disc pack./ See page 4 diagramm 1 + 2 for additional informaiton regarding misalignment./ There is no parallel misalginment for the SU Type.

Are you trading company or manufacturer ?
A: We are global construction machinery OEM manufacturer and we have been Cat,Sany,Xcmg,Cummin,Kubota,Yanmar,Rexroth....strategic partners for many years.
How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-60 days if the goods are not in stock, it is according to quantity.

How long should I wait for the reply after I send the inquiry?
A: Within 12 hours.
What infomation should I tell you to confirm the product?
A: Model/Size, Shaft diameter, hole diameter&Order quantity etc.
What is your product warrenty period?
A:We offer one year warrenty since the vessel departure date left China.
What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.We accept the LC also.
