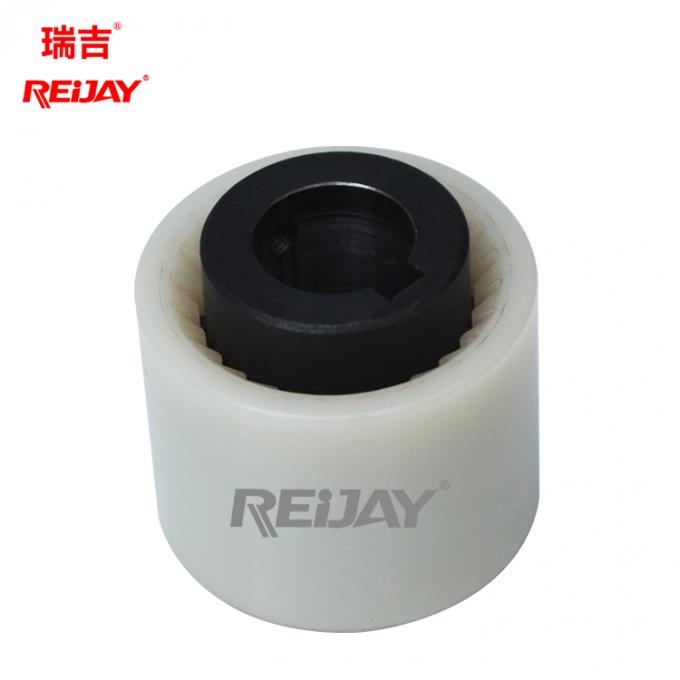

90S Nylon Sleeve Gear Coupling B24 Motor Drive Coupling Grease Resistant

Product name Nylon Sleeve Gear Coupling
Working environment Engine and pumps
Warranty 2 years
Material Nylon
Advantage Grease Resistant
Application Flexible transmission between shafts
Customize Support
Packaging type Case
Condition New
After-sales service provided Online video

Request For Quotation

Description
Q & A
Customer Reviews
Shipping Policy
Wholesale Inquiry

Grease Resistant Improves Mechanical Efficiency Extends Equipment Life Nylon Sleeve Gear Coupling

Nylon Sleeve Gear Coupling has good chemical stability and does not have strict requirements on lubricants. It can be used with oil, water and grease. Because its elasticity and plasticity are relatively large, and the allowable range of press-fit interference and fit clearance is also larger than that of metal, its tolerance requirements may not be as high as that of metal.

Technical data of Nylon Sleeve Gear Coupling:

Motor sixe	WilteSfMift Dxl [mm]		n=750 [1/min] Power P		Coupling	Tk max [Nm]	n = 1000 [1/min] Power P		Coupling	Tk max [Nm]	n = 1500 [1/min] Power P		Coupling	Tk max [Nm]	n=3000(1/min] PawwP		Coupling	Tk max [Nm]
	1500 [1/mln]	3000 [1/mm]	[kW]	TAN [Nm]			[kW]	TAN [Nm]			[kW]	TAN [Nm]			[kW]	TAN [Nm]
56	9x20				14	20	0.037	0.43	14	20	0.06	0.4	14	20	0.09	0.3	14	20
							0.045	0.52			0.09	0.6			0.12	0.4
63	11x23				14	20	0.06	0.7	14	20	0.12	0.9	14	20	0.18	0.6	14	20
							0.09	1.1			0.18	1.2			0.25	0.9
71	14x30		0.09	1.4	14	20	0.18	2	14	20	0.25	1	14	20	0.37	1.3	14	20
			0.12	1.8			0.25	2.8			0.37	2.5			0.55	1.9
80	19x40		0.18	2.5	19	32	0.37	3.7	19	32	0.55	3.7	19	32	0.75	2.5	19	32
			0.25	3.5			0.55	5.5			0.75	5			1.1	3.7
90S	24x50		0.37	5.3	24	40	0.75	7.9	24	40	1.1	7.5	24	40	1.5	4.9	24	40
90L			0.55	7.9			1.1	11			1.5	10			2.2	7.4
100 L	28x60		0.75	11	28	90	1.5	15	28	90	2.2	15	28	90	3	9.8	28	90
			1.1	16							3	20			4	13
112M	28x60		1.50	21	28	90	2.2	22	28	90	4	27	28	90	4	13	28	90
132 S	38x80		2.20	29	38	160	3	30	38	160	5.5	36	38	160	5.5	18	38	160
															7.5	25
132 M			3	40			4	39			7.5	49
							5.5	55
160M	42x110		4	54	42	200	7.5	74	42	200	11	72	42	200	11	35	42	200
			5.50	74											15	49
160 L			7.50	100			11	108			15	98			18.5	60
180M	48x110				48	280			48	280	18.5	121	48	280	22	72	48	280
180 L			11	147			15	147			22	144
200L	55x110		15	196	55	500	18.5	185	55	500	30	195	55	500	30	97	55	500
							22	215							37	117
225 S	60x140	55x110	18.50	245	65	780			65	780	37	245	65	780			55	500
225 M			22	294			30	292			45	294			45	146
250 M	65x140	60x140	30	390	65	780	37	361	65	780	55	357	65	780	55	176	65	780
280S	75x140	65x140	37	490	80	1400	45	440	80	1400	75	487	80	1400	75	245	65	780
280 M			45	585			55	536			90	584			90	294
315 S	80x170	65x140	55	715	80	1400	75	730	80	1400	110	714	80	1400	110	350	65	780
315M			75	970	100	2400	90	876	100	2400	132	857	100	2400	132	420
315 L			90	1170			110	1070			160	1030			160	513	80	1400
			110	1420			132	1200			200	1290			200	641
