HT20-40 Cast Iron Pump Rubber Coupling Machinery Nylon Sleeve

Product name Nylon Sleeve Gear Coupling
Working environment machinery transmission
Use time two years
Material cast iron
Advantage low transmission efficiency loss
Application Various occasions
Customize Support
Packaging type Case
Condition New
After-sales service provided Yes

Request For Quotation

Description
Q & A
Customer Reviews
Shipping Policy
Wholesale Inquiry

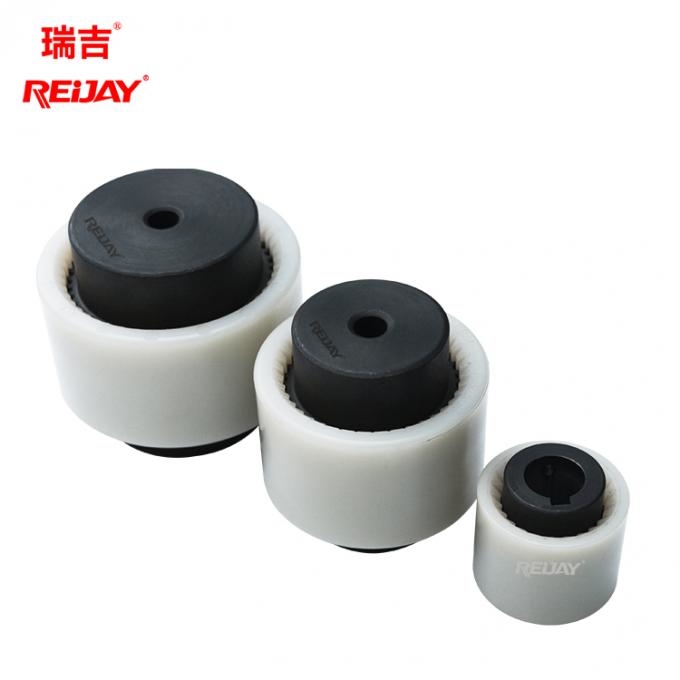

Maintenance-free and long-life cast iron Nylon Sleeve Gear Coupling for a variety of transmission applications

Nylon Sleeve Gear Coupling is widely used in various transmission occasions. This type of coupling is cast by professional process, cast iron HT20-40, cast steel ZG35Ⅱ, 45# steel, shaft hole and keyway are drawn and formed, nylon internal gear type The coupling elastomer jacket can be synthesized with various hardnesses according to user requirements.

Technical data of Nylon Sleeve Gear Coupling:

Dimensions [mm]										Extended hub length	Weight	Moment of inertia
A	B	L	L1/L2	E	H*	C	F	g	f	L1/L2	[kg]	J[lqm2]
40	25	50	23	4	15	6.5	37	M5	6	40	0.175	0.00003
48	30	54	25	4	17	7	37	M5	6		0.32	0.00047
52	36	56	26	4	17	7.5	41	M5	6	50	0.316	0.000093
66	44	84	40	4	20	19	46	M8	10	55	0.739	0.00031
76	50	84	40	4	20	18	48	M8	10	55	0.95	0.00055
83	58	84	40	4	20	18	48	M8	10	60	1.22	0.00087
92	65	88	42	4	22	19	50	M8	10	60	1.49	0.0014
100	68	104	50	4	22	27	50	M8	10	60	1.81	0.0018
125	83	124	60	4	30	30	65	M10	20		3.45	0.0046
140	96	144	70	4	32	36	72	M10	20		5.18	0.0099
175	124	186	90	6	45	46.5	93	M10	20		11.5	0.037
210	152	228	110	8	55	63	102	M12	30		20.5	0.1156

FAQ

Q: Are you trading company or manufacturer ?
A: We are global construction machinery OEM manufacturer and we have been Sany,Xcmg,Liugong,Zoomlion,Cummins,Deutz,Rexroth,Parker....supplier for many years.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-60 days if the goods are not in stock, it is according to quantity.
Q:How long should I wait for the reply after I send the inquiry?
A: Within 12 hours.
Q:What infomation should I tell you to confirm the product?
A: Model/Size, Shaft diameter, hole diameter&Order quantity etc.
Q:What is your product warrenty period?
A:We offer 2 years warrenty since the vessel departure date left China.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.We accept the LC also.

Shanghai Reijay Hydraulic Transmission Technology Co. Ltd. was established in 2003. We are committed to providing the most advanced mechanical transmission components, hydraulic group accessories and heat exchange products (heaters and coolers). To better satisfy special demands from customers, we can provide non-standard design, product invention, shafting torsional vibration calculation, simulation system testing and related professional software support.
