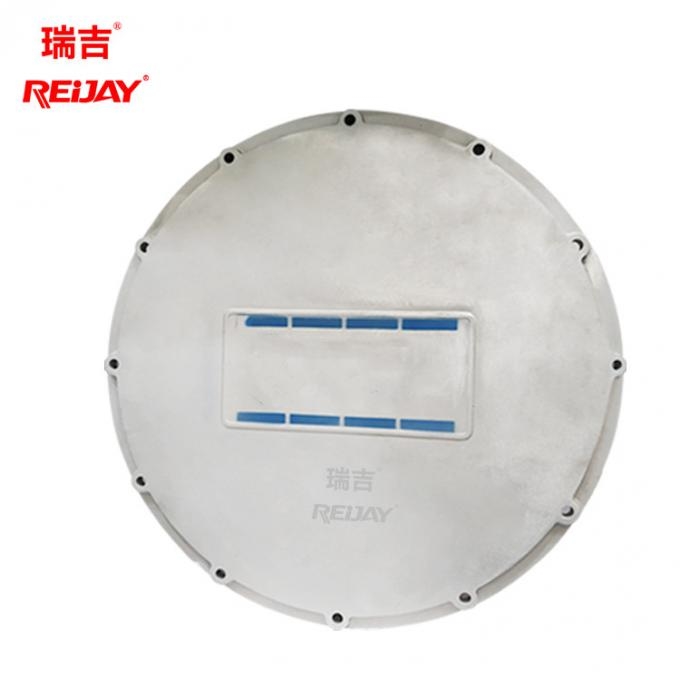

Select high quality raw materials Durable Hydraulic Tank Cleanout Covers for hydraulic system
The cleaning cover provided by REIJAY has the following features:
1. Cleaning cover V324 and V449 according to DIN24339 standard;
2. Material: aluminum alloy;
3. The maximum tightening of the mounting screws of all cleaning covers is 10Nm;
4. Corrosion resistance of V324-6/HFC and V449-6/HFC cleaning cover to HFC medium;
5. The material of PRD type sealing ring is styrene-butadiene rubber, if you need chloro rubber, please contact us;
6. If marking is required, the company logo can be customized;
7. The maximum pressure is 0.5bar
Technical Data of Hydraulic Tank Cleanout Covers:
Type of cleaning cover | Dimensions [mm] | ProMe gasket 16 x 18 | |||||
D | DI | D2 | D3 | Perbunan | Viton | ||
RD250-4 | 250 | 224 | 167 | 159 | D168 NBR | D168 FPM | |
RD350-V 324-4* | 350 | 324 | 267 | 261 | D268 NBR | D268 FPM | |
RD350-V 324-6* | 350 | 324 | 267 | 261 | D268 NBR | D268 FPM | |
RD475-V 449-6* | 475 | 449 | 392 | 386 | D393 NBR | D393 FPM | |
Type of cleaning cover | Dimensions [mm] | ProMe gasket 16 x 18 | |||||
D | DI | D2 | D3 | Perbunan | Viton | ||
RD560 | 560 | 530 | 470 | 460 | D471 NBR | ||
RD620 | 620 | 580 | 520 | 512 | D520 NBR | ||
RD720 | 720 | 680 | 620 | 608 | D620 NBR | ||
Type of cleaning cover | Dimensions [mm] | Gasket | Screw | O-Ring | |||
D | DI | D2 | Perbunan | Vition | |||
RD235 | 235 | 200 | 202 | 22x16x1.5 | M16x 55 | 214x 5 NBR | 214x 5 FPM |
RD345 | 345 | 306 | 308 | 28.7 x21.5x2.5 | M20x 65 | 319 x 8.4 NBR | 315x 10 FPM |
FAQ
Q: Are you trading company or manufacturer ?
A: We are global construction machinery OEM manufacturer and we have been Sany,Xcmg,Liugong,Zoomlion,Cummins,Deutz,Rexroth,Parker....supplier for many years.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-60 days if the goods are not in stock, it is according to quantity.
Q:How long should I wait for the reply after I send the inquiry?
A: Within 12 hours.
Q:What infomation should I tell you to confirm the product?
A: Model/Size, Shaft diameter, hole diameter&Order quantity etc.
Q:What is your product warrenty period?
A:We offer 2 years warrenty since the vessel departure date left China.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.We accept the LC also.
