ODM Hydraulic Oil Tank Level Gauge Aluminum Hydraulic Fluid Sight Glass 127mm

Customized OEM, ODM, OBM
Model number Fsa-127-1 SF127-TH-E1
Application Hydraulic system
Working temperature -10℃-+100℃
keyword hydraulic oil levelg gauge;hydraulic oil indicator
Grade industrial
Materail Steel,aluminum
warranty 2years
packing standard export packing

Request For Quotation

Description
Q & A
Customer Reviews
Shipping Policy
Wholesale Inquiry

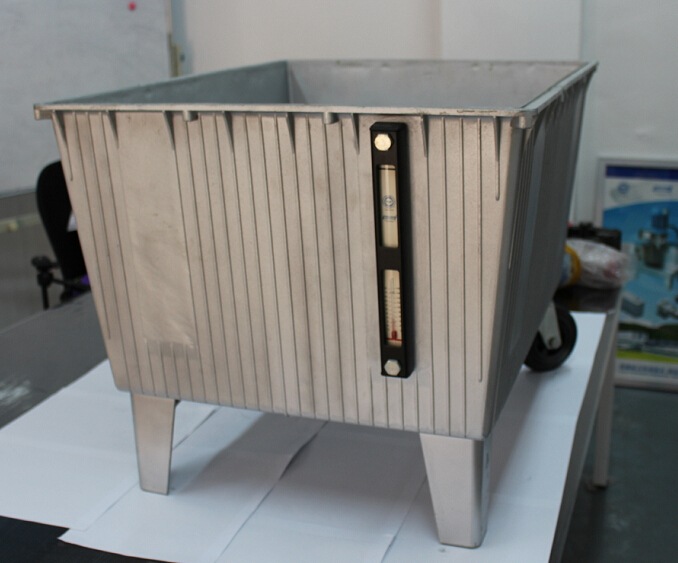

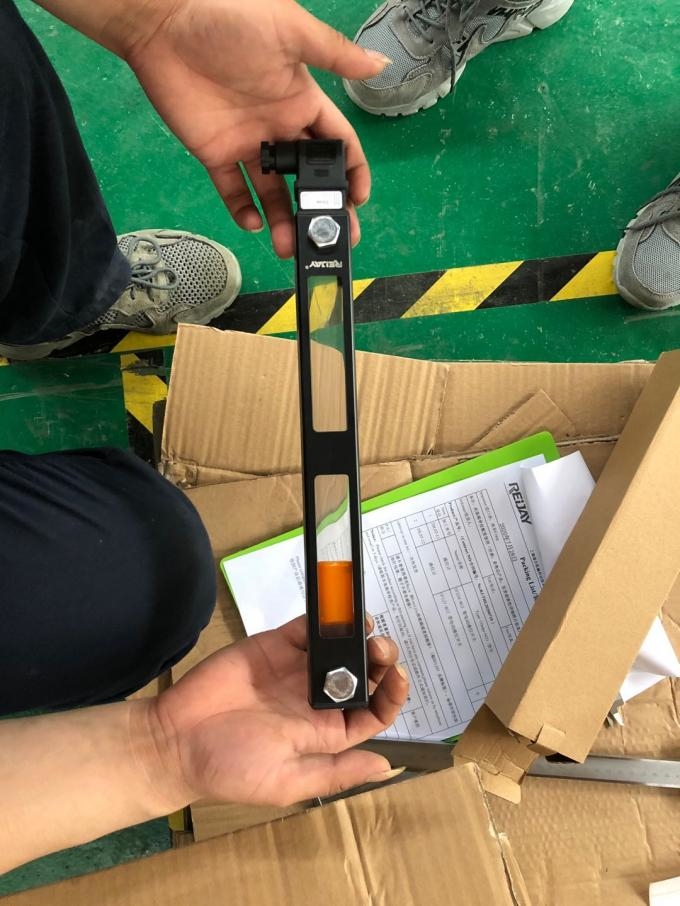

Hydraulic oil tank level gauge Fluid Level Gauge Fsa-127-1

Founded in 2003, Shanghai Reijay Hydraulic & Transmission Tech Co., Ltd focus on mechanical power transmission coupling, hydraulic system spare parts and heat exchanger products (oil heating and cooling equipment) manufacture and export. We also provide relevant technical supports and service. We also serve customers with design, assemble, remolding and maintenance of industrial automation components (pneumatic, hydraulic, PLC), industrial intelligent system, hydraulic power units and drive sections.

Advantages of Reijay level gauge:

1. The maximum and minimum liquid level could be known by visual inspection and

electronic control.

2. Alarm and control point are free to choose.

3. The maximum length for the special indicator could be 4000 mm

4. External mounting and embedded level gauges are available

5. Multi-points electrical control and temperature display or temperature control

6. Good sealing performance, and internal leakage are prevented

7. Oil resistance on level gauges’ surface, anti aging and anti discoloring, customized for special length

8. Various types of breather plugs or oil filler plugs are optional

We can replace HYDAC model directly

FSA 127-1.X/-/12 (reijay model: SF127-M12)(With temperature display)Black type

FSA 254-1.X/-/12 (reijay model: SF254-M12)(With temperature display)Black type

FSA 381-1.X/-/12 (reijay model: SF381-M12)(With temperature display) Black type

FSK 127 2.4/0/-/12 (reijay model: SF127-E1-M12)(With electric level switch normally closed)

FSK 254 2.4/0/-/12 (reijay model: SF254-E1-M12)(With electric level switch normally closed)

FSK 381 2.4/0/-/12 (reijay model: SF381-E1-M12)(With electric level switch normally closed)

Liquid Level Tank Gauge Fluid Level Gauge Fsa-127-1 SF127-TH-E1

		- E1				- 1
Type SF		liquid level switch				Tighten bolt Installed on the tank wallcenter distance
		no liquid level switch				1=76
		The default normally closed 0 type				2=127
		no liquid level switch				3=254
		normally C type				L=Speciallength can be customized
		double switch W type


				- Th
- V				thermometer function
Seal material				No temperature function
tacitly approve NBR rubber				Default tube scale thermometer
V FPM				Tube scale thermometer range: -10.C..+80°C
				Sf1 tube scale display range: +20°C.. +80°C
- CV				external bime tal thermometer length 200mm
Fastening bolt				external bimetal thermometer length 300mm
Default M12				Temperature switch temperature +60°C
With check check valve				Temperature switch temperature+70°C
FV anti-leak type				Temperature switch temperature+80°C
				Temperature switch normally closed contact, when the oil temperature
				exceeds the set switch temperature
				Contact open, temperature alarm


Type	size(mm)
Type	A	B	C	D	E	27	G
SF1	76	32	108	34	45	27	M12
SF2	127	76	159	34	45	27	M12
SF3	254	203	286	34	45	27	M12

OUR SERVICE

1) With excellent quality and Reasonable price
(2) Promise to delivery on time
(3) Safe, reliable, economical and durable
(4) Stable transmission, quiet operation
(5) High heat-radiating efficiency, high carrying ability
(6) Every product must be tested before sending

FAQ:

Are you trading company or manufacturer ?
A: We have factory.
How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-60 days if the goods are not in stock, it is according to quantity.
How long should I wait for the reply after I send the inquiry?
A: Within 12 hours.
What infomation should I tell you to confirm the product?
A: Model/Size, Shaft diameter, hole diameter&Order quantity etc.
What is your product warrenty period?
A:We offer one year warrenty since the vessel departure date left China.
What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.We accept the LC also.
If you have another question, pls feel free to contact us
